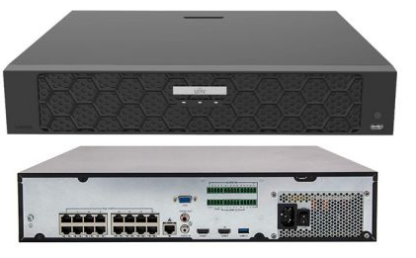

UNV NVR504-B-P Series 32CH 16CH POE 16MP 4 HDD NVR504-32B-P16

Login For Best Price In Canada

Get 5 % off for in-store pickup (Must Pre Pay online)

Support Ultra 265/H.265/H.264 video formats

32‑channel input

Plug & Play with 16 independent PoE network interfaces

Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols

Support 1‑ch HDMI, 1‑ch VGA. HDMI up to 4K (3840×2160) resolution

VGA and HDMI independent output

Up to 16 Megapixels resolution recording

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

SKU: NVR504-32B-P16 Category:
Decoding Description
DecodingFormat Ultra 265, H.265, H.264
DecodingCapability NVR504‑16B‑P16:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30
H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 16 x 720P@30 NVR504‑32B‑P16:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25
H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1
AudioCompression G.711A, G.711U
Network Description
IncomingBandwidth 320Mbps
OutgoingBandwidth 160Mbps
RemoteUsers 128
Protocols TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP;802.1x;IPV6
Browser(Plugin) Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above)
Video/AudioInput Description
IPVideoInput NVR504‑16B‑P16:16‑ch NVR504‑32B‑P16:32‑ch
RCAAudioInput 1‑ch
Video/AudioOutput Description
HDMIOutput HDMI:4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGAOutput VGA:1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
RCAAudioOutput 1‑ch
LiveviewDisplay NVR504‑16B‑P16:1/4/6/8/9/16 NVR504‑32B‑P16:1/4/6/8/9/16/25/32
CorridorModeScreen NVR504‑16B‑P16:3/4/5/7/9/10/12/16 NVR504‑32B‑P16:3/4/5/7/9/10/12/16/32
Two-wayAudio Description
Two-wayAudio 1‑ch, RCA(Using the audio input and output)
Snapshot Description
FTP/Schedule/EventSnapshot 4‑ch snapshot, up to D1 resolution
Recording Description
RecordingResolution 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF
SynchronousPlaybackinLocal 16‑ch
Smart Description
VCADetectionbyIPC Face Detection;Vehicle Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);Temperature Detection(Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection);People Counting(People Flow Counting, Crowd Density Monitoring);Video Metadata;Traffic Monitoring
VCASearch Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map
SmartbyIPC All channels (up to 8 images/s in total)Face Detection, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
Alarm Description
GeneralAlarm Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection
AlertAlarm IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal
GUILanguage Description
GUILanguage 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
HardDisk Description
SATA 4 SATA Interfaces
Capacity Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature)
DiskGroup Support
RedundantStorage Support
DiskArrayType RAID 1, 5
ExternalInterface Description
NetworkInterface 1 RJ45 10M/100M/1000M self‑adaptive Ethernet Interface
USB Front panel: 1 x USB2.0;Rear panel: 1 x USB3.0
RS485 1
RS232 N/A
AlarmIn 16‑ch
AlarmOut 4‑ch
PowerSupply AC 100 ~ 240 V
PowerSwitch Support
PoE Description
Interface 16 RJ45 10M/100M self‑adaptive Ethernet Interface
MaxPower Max 30W for single port, Max 150W in total
SupportedStandard IEEE 802.3at, IEEE 802.3af
WorkingEnvironment Description
WorkingTemperature ‑10 °C ~ 55 °C (14 °F ~ 131 °F)
WorkingHumidity ≤ 90% RH (non‑condensing)
PowerConsumption(withoutHDD) ≤ 20W
Dimensions Description
Weight(withoutHDD) ≤ 4Kg (8.82lb)
Dimensions 400mm × 368mm × 74mm
(15.7″×14.5″×2.9″)
Certification Description
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035
FCC Part15 Subpart B
