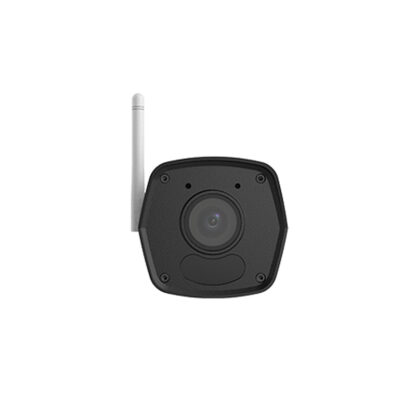

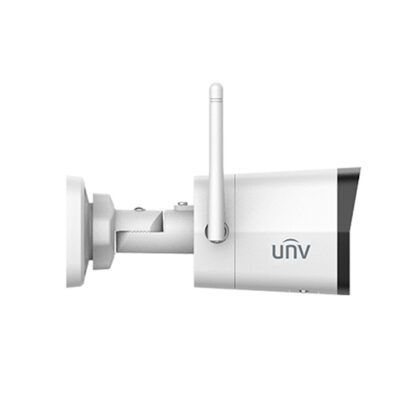

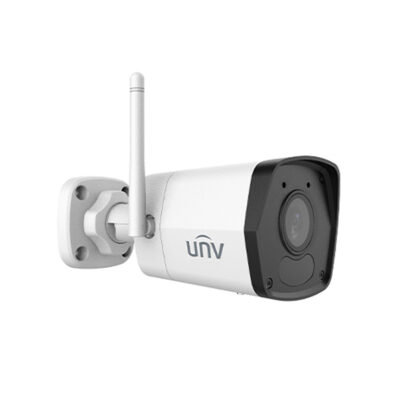

    UNV IPC2122LB-AF28WK-G 2MP HD 1080P WIFI Bullet Network Camera 2.8mm Lens

    Login For Best Price In Canada

    -High quality image with 2MP, 1/2.9″CMOS sensor

    -2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps

    -Ultra 265, H.265, H.264, MJPEG

    -Built-in Mic

    -Smart IR, up to 30m (98ft) IR distance

    -Supports 128 G Micro SD card

    -IP67 protection

    -3-Axis

    -2.8MM Lens

    SKU: IPC2122LB-AF28WK-G Categories: , , ,
      IPC2122LB-AF28WK-G IPC2122LB-AF40WK-G
    Camera
    Sensor 1/2.9″, 2.0 megapixel, progressive scan, CMOS
    Minimum Illumination Colour: 0.01 lux (F2.0 AGC ON)
    0 lux with IR on
    Day/Night IR-cut filter with auto switch (ICR)
    Shutter Auto/Manual, 1~1/100000 s
    Adjustment Angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
    S/N >52dB
    WDR DWDR
    Lens
    Lens Type 2.8mm@F2.0 4.0mm@F2.0
    Iris Fixed
    Field of View (H) 101.1° 83.7°
    Field of View (V) 55.0° 44.6°
    Field of View (D) 111.0° 89.1°
    DORI
    DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
    2.8mm 45.0 18.0 9.0 4.5
    4.0mm 64.3 25.7 12.9 6.4
    Illuminator
    IR Range Up to 30m (98 ft) IR range
    Wavelength 850nm
    IR On/Off Control Auto/Manual
    Video
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main profile, High profile
    Frame Rate Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
    Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    Video Bit Rate 128 Kbps~6 Mbps
    U-code Support
    OSD Up to 4 OSDs
    Privacy Mask Up to 4 areas
    ROI Up to 8 areas
    Video stream Dual streams
    White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    Digital noise reduction 2D/3D DNR
    Smart IR Support
    Flip Normal/Vertical/Horizontal/180°
    Dewarping N/A
    HLC Support
    BLC Support
    Defog Digital Defog
    Events
    Basic Detection Human body detection, Motion detection, tampering alarm, audio detection
    General Function Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication
    Audio
    Audio Compression G.711U, G.711A
    Audio Bitrate 64 Kbps
    Two-way Audio N/A
    Suppression Support
    Sampling Rate 8KHZ
    Storage
    Edge Storage Micro SD, up to 128GB
    Network Storage ANR,NAS(NFS)
    Network
    Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP
    Compatible Integration ONVIF (Profile S, Profile G, Profile T), API , SDK
    User/Host Up to 32 users. 2 user levels: administrator and common user
    Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
    Client EZStation
    EZView
    EZLive
    Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
    Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
    Wi-Fi
    Wireless Standards IEEE802.11b/g/n
    Frequency Range 2.4 GHz ~ 2.4835 GHz
    Wireless Range Up to 130 m (The performance varies based on actual environment)
    Channel Bandwidth 20 MHz Support
    Modulation Mode 802.11b: CCK, QPSK, BPSK
    802.11g/n: OFDM/HT
    Security 64/128-bit WEP,  WPA-PSK/WPA2-PSK
    Transmit Power 802.11b: 17±1.5dBm @11Mbps
    802.11g: 14±1.5dBm @ 54Mbps
    802.11n: 12.5±1.5dBm @150Mbps
    Receive Sensitivity 802.11b: -90dBm @11Mbps (Typical)
    802.11g: -75dBm @54Mbps (Typical)
    802.11n: -74dBm @150Mbps (Typical)
    Transmission Rate 802.11b: 11Mbps
    802.11g: 54Mbps
    802.11n: up to 150Mbps
    Interface
    Audio I/O N/A
    Alarm I/O N/A
    Serial Port N/A
    Built-in Mic Support
    Built-in Speaker N/A
    WIFI Support
    Network 1 RJ45 10M/100M Base-TX Ethernet
    Video Output N/A
    Certification
    EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
    FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
    RF FCC ID (FCC CFR 47 part15 C)
    CE RED (EN 62311: 2008, EN 300 328 V2.2.2(2019-07), EN 301489-1 V2.2.3(2019-11), ETSI EN 301 489-17 V3.2.4(2020-09))
    Safety CE LVD (EN 62368-1:2014+A11:2017)
    CB (IEC 62368-1:2014)
    UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
    Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
    Protection IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
    General
    Power DC 12V±25%
    Power consumption: Max 4.0 W
    Power Interface Ø 5.5mm coaxial power plug
    Dimensions (L × W × H) 172 × 76 ×72 mm (6.8” × 3” × 2.8”)
    Weight 0.25 kg (0.55 lb)
    Material Metal + Plastic
    Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
    Storage Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity:≤95% RH(non-condensing)
    Surge Protection 4KV
    Reset Button Support
