Model | ED525BWB |
Camera | |
Resolution main camera | 3MP |
Resolution sub camera | 2MP |
FOV main camera | Horizontal: 116°
Vertical: 82.5° |
FOV sub camera | Horizontal: 96.8°
Vertical: 52.6° |
Power kit | |
power kit | 240 mAH rechargeable lithium battery (for mechanical chime) |
Charge temperature | 0 °C to 45 °C |
Alarm Event | |
Motion detection alarm | Support |
UMD alarm | Supports human body detection alarm |
Package detection alarm | Support |
WiFi | |
Operating frequency band | 2.4 GHz and 5G Hz |
BLE function | Compatible, integrated BLE, supports network connection via Bluetooth |
Antenna type | Built in omnidirectional antenna |
WLAN | 802.11 b/g/n/ax |
Encryption | WPAPSK/WPA2PSK/WPA3personal |
Bluetooth | Support, integrated in WiFi chip |
SUB1G | |
SUB1G | Supported, for chime connection |
Chimes | Max. 3 wireless chimes or 1 mechanical chime |
Interface | |
Reset button | 1 micro switch for both pairing and reset |
Built in Mic | Support |
Built in speaker | Support |
Interface protocol | UNV private protocol |
Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP |
Illuminator | |
Illumination scheme | IR + white light |
Illumination distance | IR: 5 meters
White light: 2 meters |
Min. Illumination | 0.02 lux |
General | |
Dimensions | 55.8 mm × 156.5 mm × 27.9 mm |
Weight | Net weight: 142g
Gross weight: 295g |
Power consumption | 10W |
Installation method | With bracket installation, the power cable is installed on the bracket, and the doorbell is connected to the bracket through the contacts. |
Button | One call button |
Power source | Contact: AC 12 V to 24 V |
Operating temperature | -30 °C to 60 °C |
Ingress protection | IP65 |
WDR | |
WDR | Supports DWDR, main camera 80dB, sub camera 58dB |
Video | |
Video compression | H.265, H.264 |
Audio | |
Audio bit rate | 128 Kbps |
Audio sampling rate | 8K |
Audio compression | G711, MP3, PCM |
Certification | |
Certification | CB, CE LVD, CE EMC, CE RED, FCC SDOC, FCC ID |
**All Products**

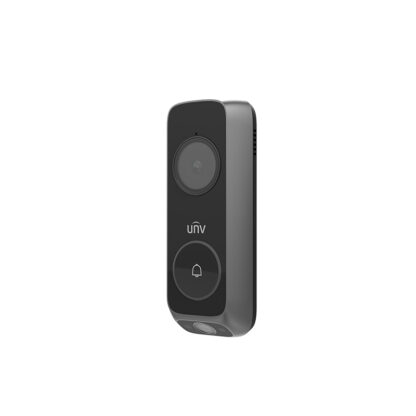

UNV ED-525B-WB 3 MP+2 MP DualLens Video Dual-Band Wi-Fi Smart Doorbell with Package Detection
The UNV ED-525B-WB video doorbell is equipped with two high definition ultrawide angle lenses to provide a broad view of your front yard. The device supports motion detection, package detection, and human body detection, meeting your daily home security needs. The doorbell can also call the UNVLink app, allowing you to answer visitor calls anytime, anywhere.
– Supports mechanical chime and wireless chime.
– Supports connection to a Uniview NVR for live view, playback, and alarm search.
– Supports reporting motion detection alarms, human body detection alarms, and package detection alarms to UNVLink and NVR.
– 3 MP + 2 MP dual cameras: The main camera for observing visitors, and the sub camera for monitoring the ground in front of the door, providing a wider view.
– Supports noise suppression.
– Supports true HDR and WDR, capturing clearer images in backlit scenes.
– Supports calling the UNVLink app, allows you to answer visitor calls anytime, anywhere using the app.
– Supports Sub1GHz wireless chime.
– Supports dualband WiFi (2.4 GHz and 5 GHz) and WiFi 6, faster video streaming and realtime monitoring.
– Supports network connection through Bluetooth, quick and simple.
– Builtin 8 GB eMMC storage, no extra storage costs necessary.
