| Product specification | Cat5e. U/UTP. 4×2×0.50mm
CMR(UL) |
||||
| Executive Standard | ISO/IEC11801 ED.2
ANSI/TIA-568-C.2 |
||||
| Conductor | Material | Solid-Bare Copper | |||
| AWG | 24 | ||||
| Nom.O.D.(mm) | 0.5±0.005 mm | ||||
| DC resistance | ≤95 Ω/km | ||||
| Insulation | Material | HDPE | |||
| Thickness | 0.2±0.02 mm | ||||
| Diameter | 0.9±0.05 mm | ||||
| Color | Blue/White- Blue | Green/White-Green | |||
| Orange
/White-Orange |
Brown/White-Brown | ||||
| Pitch | Offset pitch | ≤25 mm | |||
| Cable pitch | ≤140 mm | ||||
| Sheath | Material | PVC(complies RoHS/REACH) | |||
| External O.D. | 5.1±0.3 mm | ||||
| Color | Gray(RAL7046) | ||||
| Tensile strength | >13.5 Mpa | ||||
| Thickness | 0.55±0.05 mm | ||||
| Surface Printing | Letter height | 3.0±0.3 mm | |||
| Color | Black | ||||
| Print error
& Space |
1±0.005 m | ||||
| Case number | Yes | ||||
| Packing | Packing | Carton | |||
| Once packing dimension | 350mm*216mm*350mm | ||||
| Twice packing dimension | 370mm*460mm*370mm | ||||
| Twice packing quantity | 2 cases | ||||
| Packing length | 305±1 m | ||||
| Rip-cord | Yes | ||||
| Ambient temperature | -20℃～60℃ | ||||
OnLine Shop
Sale!

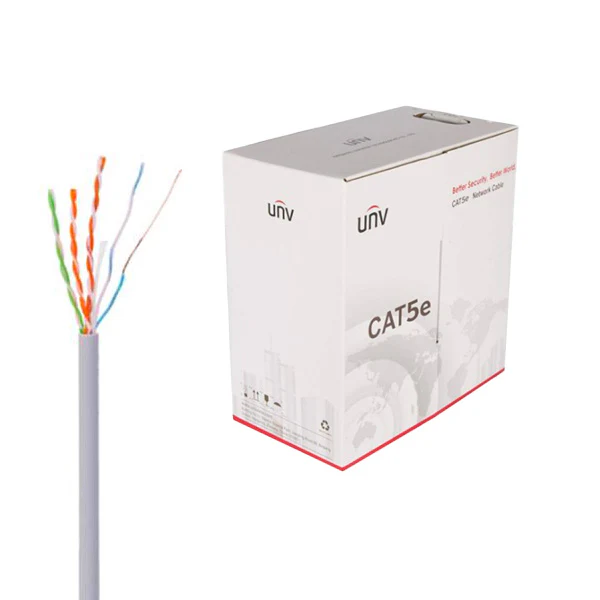

UNV CAT5e UL CMR (350 Mhz) 24AWG Riser 1000FT Pull Box Network Cable Option for White, Black and Grey
Login For Best Price In Canada
Get 5 % off for in-store pickup (Must Pre Pay online)
| Specification | |
| Type | Riser Rated |
Email or Call in Color Type you Required.
Or White Cable Will be Sent.
