    UNV 5MP ColorHunter F1.0 Lens 0.001 Lux LED Light Bullet Camera 4mm Lens (NDAA) IPC2225SE-DF40K-WL-I0

    Login For Best Price In Canada

    IPC2225SE-DF40(60)K-WL-I0
    5MP HD Intelligent ColorHunter Fixed Bullet Network Camera
    • High quality image with 5MP, 1/2.7″CMOS sensor
    • 5MP (2880*1620)@30/25fps; 4MP (2560*1440)@30/25fps;3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps;
    • Ultra 265, H.265, H.264, MJPEG
    • Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
    • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
    • Intelligent People Flow Counting and Crowd Density Monitoring
    • Colorhunter technology ensures 24-hour full-color images
    • 120dB true WDR technology enables clear image in strong light scene
    • Support 9:16 corridor Mode
    • Alarm:1 in/1 out, Audio: 1 in/1 out
    • Supports 256 G micro SD card
    • IK10 vandal resistant and IP67 protection

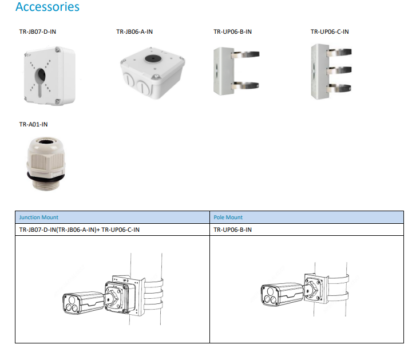

    • Support PoE power supply (Recommended mounts (TR-JB07-IN))

    SKU: IPC2225SE-DF40K-WL-I0 Categories: , , Tags: ,
    IPC2225SE-DF40K-WL-I0 IPC2225SE-DF60K-WL-I0
    Camera
    Sensor 1/2.7″, 5.0 megapixel, progressive scan, CMOS
    Minimum Illumination Colour: 0.001Lux (F1.0, AGC ON)
    Shutter Auto/Manual, 1 ~ 1/100000s
    Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
    WDR 120dB
    S/N >56dB
    Lens
    Lens 4.0mm@F1.0 6.0mm@F1.0
    Angle of View (H) 80.2° 53.4°
    Angle of View (V) 43.0° 29.2°
    Angle of View (O) 94.7° 61.6°
    DORI
    DORI Distance Lens (mm) Detect（m） Observe（m） Recognize（m） Identify（m）
    4.0 90.0 36.0 18.0 9.0
    6.0 135.0 54.0 27.0 13.5
    Illuminator
    LED Distance Up to 30m (98ft)
    LEDs Number 2
    LED On/Off Control Auto/Manual
    Video
    Video Compression Ultra265, H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main profile, High profile
    Frame Rate Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps;3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; 720P(1280*720), Max 30fps
    Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps;
    Third Stream: D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    Video Bit Rate 128 Kbps~16 Mbps
    U-code Support
    ROI Up to 8 areas
    Video Stream Triple streams
    OSD Up to 8 OSDs
    Privacy Mask Up to 4 areas
    White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    Image Setting Image rotation, brightness, saturation, contrast, sharpness, gain adjustable by web browser
    Digital noise reduction 2D/3D DNR
    Smart Illumination Support
    Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
    Dewarping N\A
    HLC Support
    BLC Support
    Defog Digital Defog
    Intelligent
    Smart intrusion prevention Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection
    Statistical Analysis People counting, support tripwire people counting and area people counting
    Events
    Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio Detection
    General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
    Audio
    Audio Compression G.711
    Audio Bitrate 64 Kbps
    Two-way audio Support
    Suppression Support
    Sampling Rate 8KHZ
    Storage
    Edge Storage Micro SD, up to 256GB
    Network Storage ANR, NAS(NFS)
    Network
    Protocols IPv4, IPv6 ,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH
    Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK
    Client EZStation
    EZView
    EZLive
    Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
    Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
    Interface
    Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
    Output: impedance 600Ω; amplitude 2V [p-p]
    Alarm I/O 1/1
    RS485 N/A
    Built-in Mic N/A
    Built-in Speaker N/A
    WIFI N/A
    Network 1 RJ45 10M/100M Base-TX Ethernet
    Video Output N/A
    Certifications
    EMC FCC CFR 47 Part 15
    EN 55032:2015
    EN 55024:2010
    EN 61000-3-2:2014
    EN 61000-3-3-2013
    Safety IEC 62368-1
    EN 62368-1
    UL 62368-1
    Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
    Protection Ingression protection: IP67 (IEC 60529-2013)
    Vandal resistant: IK10 (IEC 62262:2002)
    General
    Power DC 12V±25%, PoE (IEEE 802.3af)
    Power consumption: Max 9.0W
    Power Interface Ø 5.5mm coaxial power plug

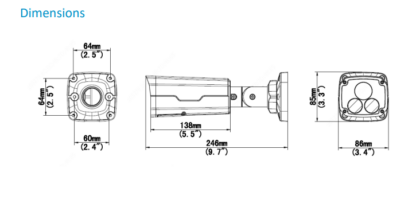

    Dimensions (L × W × H) 246× 86 × 85mm (9.7” × 3.4” × 3.3”)
    Weight 0.92kg (2.02lb)
    Material Metal
    Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    surge protection 4KV
    Reset Button N\A
