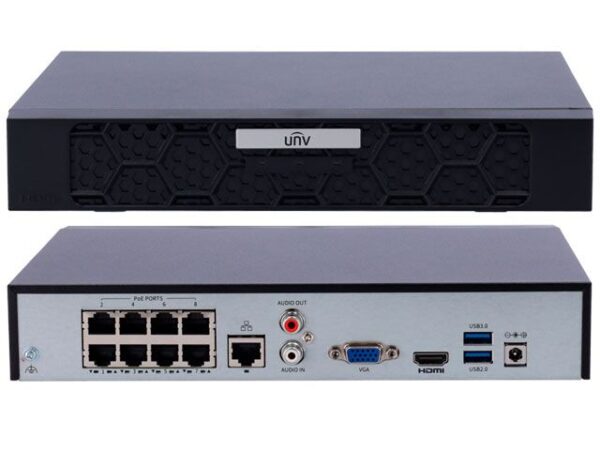

UniView NVR501-08B-P8, 8 channel PoE NVR.
- Complies with Section 889 of the NDAA
This UNV NVR recorder with 8 inputs supported with PoE 30W of Uniview. This recorder allows you to connect IP cameras to a maximum resolution of 16Mp.
**The Long Range PoE allows for runs up to 820′**
This recorder has 1 SATA connection. This connector allows you to connect a hard drive to a maximum size of 8TB. You can also connect a mouse and / or USB storage to the recorder using the 2 USB connectors. Also, this NVR has a VGA and HDMI output for connecting a monitoring monitor.
You can access the recorder using a smartphone application called EZView & UNV-Link. This application is suitable for iOS or android and you can view live, play back and back up images. Also, the recorder supports a handy P2P feature, so you do not have to forward any ports.
Improved reliability is guaranteed by ANR technology in the event of network failures. Also take advantage of cloud upgrades for the latest features. Perfect for effective camera management and security applications.
| Decoding | Description |
| DecodingFormat | Ultra 265, H.265, H.264 |
| DecodingCapability | NVR501‑04B‑P4:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30 NVR501‑08B‑P8:Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30 H.264: 2 x 16MP(4800*2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30 |
| AudioCompression | G.711A, G.711U |
| Network | Description |
| IncomingBandwidth | 80Mbps |
| OutgoingBandwidth | 64Mbps |
| RemoteUsers | 128 |
| Protocols | TCP/IP;P2P;UPnP;NTP;DHCP;PPPoE;HTTP;HTTPS;DNS;DDNS;SNMP;SMTP;RTSP;IPv6 |
| Browser(Plugin) | Windows:IE(IE10/11), Firefox (version 52.0 and above), Chrome(version 45 and above), Edge(version 79 and above) |
| Video/AudioInput | Description |
| IPVideoInput | NVR501‑04B‑P4:4‑ch NVR501‑08B‑P8:8‑ch |
| RCAAudioInput | 1‑ch |
| Video/AudioOutput | Description |
| HDMIOutput | HDMI:4K(3840×2160)/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGAOutput | VGA:1920×1080/60Hz, 1920×1080/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| RCAAudioOutput | 1‑ch |
| LiveviewDisplay | NVR501‑04B‑P4:1/4 NVR501‑08B‑P8:1/4/6/8/9 |
| CorridorModeScreen | NVR501‑04B‑P4:3/4 NVR501‑08B‑P8:3/4/5/7/9 |
| Two-wayAudio | Description |
| Two-wayAudio | 1‑ch, RCA(Using the audio input and output) |
| Snapshot | Description |
| FTP/Schedule/EventSnapshot | 4‑ch snapshot, up to D1 resolution |
| Recording | Description |
| RecordingResolution | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P/D1/2CIF/CIF |
| Smart | Description |
| VCADetectionbyIPC | Face Detection;SIP(Intrusion Detection, Cross Line Detection, Enter Area, Leave Area);Ultra Motion Detection(UMD);People Counting(People Flow Counting, Crowd Density Monitoring) |
| VCASearch | Motor Vehicle Search;Non‑Motor Vehicle Search;Human Body Search;General Search;People Counting Report;Heat Map |
| SmartbyIPC | NVR501‑04B‑P4:Total 4‑ch(Face Detection, SIP, UMD) NVR501‑08B‑P8:Total 8‑ch(Face Detection, SIP, UMD) |
| Alarm | Description |
| GeneralAlarm | Defocus Detection;Scene Change Detection;Object Left Behind;Object Removed;Auto Tracking;Motion Detection;Tampering;Human Body Detection;Video Loss;Alarm Input;Audio Detection |
| AlertAlarm | IP Conflict;Network Disconnected;Disk Offline;Disk Abnormal;Illegal Access;Hard Disk Space Low;Hard Disk Full;Recording/Snapshot Abnormal |
| GUILanguage | Description |
| GUILanguage | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
| HardDisk | Description |
| SATA | 1 SATA Interface |
| Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature and hard disk size) |
| ExternalInterface | Description |
| NetworkInterface | 1 RJ45 10M/100M self‑adaptive Ethernet Interface |
| USB | Rear panel: 1 x USB2.0, 1 x USB3.0 |
| RS485 | N/A |
| RS232 | N/A |
| AlarmIn | N/A |
| AlarmOut | N/A |
| PowerSupply | NVR501‑04B‑P4:DC 48V/1.35A NVR501‑08B‑P8:DC 52V/1.8A |
| PoE | Description |
| Interface | NVR501‑04B‑P4:4 RJ45 10M/100M self‑adaptive Ethernet Interface NVR501‑08B‑P8:8 RJ45 10M/100M self‑adaptive Ethernet Interface |
| MaxPower | NVR501‑04B‑P4:Max 30W for single port, Max 50W in total NVR501‑08B‑P8:Max 30W for single port, Max 75W in total |
| SupportedStandard | IEEE 802.3at, IEEE 802.3af |
| WorkingEnvironment | Description |
| WorkingTemperature | ‑10 °C ~ 55 °C (14 °F ~ 131 °F) |
| WorkingHumidity | ≤ 90% RH (non‑condensing) |
| PowerConsumption(withoutHDD) | ≤ 10W |
| Dimensions | Description |
| Weight(withoutHDD) | ≤ 1.1Kg (2.43lb) |
| Dimensions | 260mm × 222mm × 47mm (10.2″×8.7″×1.8″) |
| Certification | Description |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035 |
| FCC | Part15 Subpart B |
