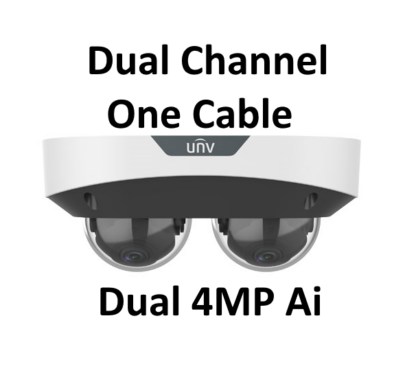

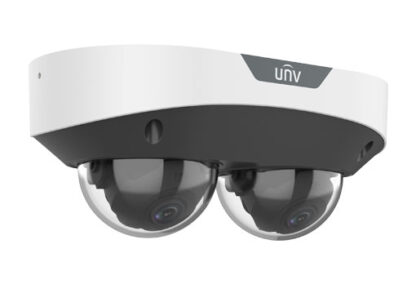

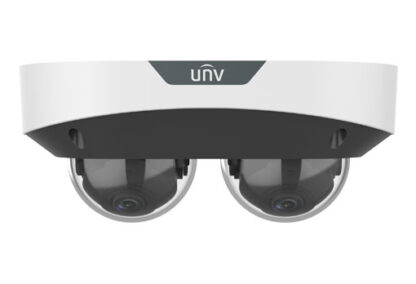

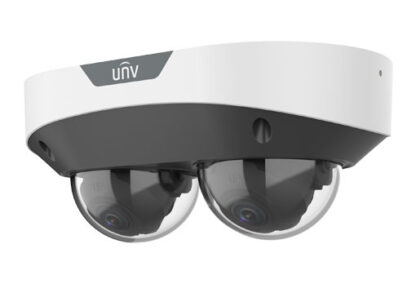

    UNV 2*4MP (180 Coverage)130Db WDR Dual Channel (one Cable) Ai Intelligent StarLight LightHunter IR Ik10 Dome Camera 2.8mm Lens (NDAA) IPC3224SS-ADF28K-I1

    Login For Best Price In Canada

    IPC3224SS-ADF28(40)K-I1
    2*4MP Dual-channel Non-Splicing Multiview Series IR Fixed Intelligent Network Camera
    • High quality image with 2*4MP resolution, 1/3.0″CMOS sensor
    • Single IP with dual channels
    • 4MP (2688*1520)@25/20fps; 4MP(2560*1440)@25/20fps; 3MP(2304*1296) @30/25fps;2MP(1920*1080)@30/25fps
    • Ultra 265, H.264,H.265, MJPEG
    • Both channels support intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
    • Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and motor vehicle and non-motor vehicle
    • Intelligent People Flow Counting and Crowd Density Monitoring (Only Channel 1)
    • 130dB true WDR technology enables clear image in strong light scene
    • Built-in two Mics
    • Supports 256 GB Micro SD card
    • DC12V or PoE(IEEE 802.3af) power supply
    • IP67 protection and IK10 vandal resistant

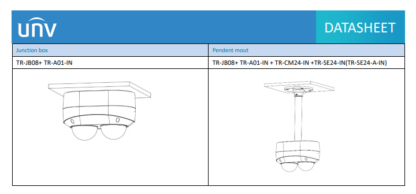

    • 3-Axis (Recommended mounts (TR-JB08-IN)

    SKU: IPC3224SS-ADF28K-I1 Categories: , , Tags: , ,
    IPC3224SS-ADF28K-I1
    Camera
    Sensor 1/3.0″, 4.0 megapixel, progressive scan, CMOS
    Minimum Illumination Colour:0.002 (F1.6, AGC ON)
    0 lux with IR
    Day/Night IR-cut filter with auto switch (ICR)
    Shutter Auto/Manual, 1 ~ 1/100000s
    Adjustment angle Pan: 0° ~ 180° Tilt: 0° ~ 66° Rotate: 0° ~ 346°
    WDR 130dB
    S/N >52dB
    Lens
    Lens type 2.8mm@F1.6 4.0mm@F1.6
    Iris Fixed
    Field of View (H) 97.7° 81.4°
    Field of View (V) 52.7° 43.4°
    Field of View (O) 102.5° 86.9
    DORI
    DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
    2.8 63.0m(206.7ft) 25.2m(82.7ft) 12.6m(41.3ft) 6.3m(20.7ft)
    4.0 90.0m(295.3ft) 36.0m(118.1ft) 18.0m(59.1ft) 9.0m(29.5ft)
    Illuminator
    IR Range Up to 30m (98ft) IR range
    Wavelength 850nm
    IR On/Off Control Auto/Manual
    Video
    Video Compression Ultra 265, H.265, H.264, MJPEG
    H.264 code profile Baseline profile, Main profile, High profile
    Frame Rate Main Stream:4MP(2688*1520) ,Max 25fps; 4MP(2560*1440), Max 25fps; 3MP(2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P(1280*720) Max 30fps
    Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
    Video Bit Rate 128 Kbps~16 Mbps
    U-code Support
    OSD Up to 8 OSDs
    Privacy Mask Up to 4 areas
    ROI Up to 8 areas
    Video Stream Triple streams
    White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
    Digital Noise Reduction 2D/3D DNR
    Smart IR Support
    Flip Normal/ Flip Vertical/ Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
    Dewarping N/A
    HLC Support
    BLC Support
    Defog Digital Defog
    Intelligent
    Smart intrusion prevention Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area detection
    Statistical Analysis People counting, support people flow counting and crowd density monitoring(Only Channel 1)
    Events
    Basic Detection Motion detection, Ultra motion detection, Tampering alarm, Audio detection
    General Function Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication
    Audio
    Audio Compression G.711U, G.711A
    Audio Bitrate 64 Kbps
    Two-way audio Support
    Suppression Support
    Sampling Rate 8KHZ
    Storage
    Edge Storage Micro SD, up to 256GB
    Network Storage ANR, NAS(NFS)
    Network
    Protocols IPv4,IPv6, IGMP, ICMP ,ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
    Compatible Integration ONVIF (Profile S, Profile T, Profile G), API,SDK
    User/Host Up to 32 users. 3 user levels: administrator, common user and operator
    Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF
    Client EZStation
    EZView
    EZLive
    Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
    Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
    Interface
    Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p]
    Output: impedance 600Ω; amplitude 2V [p-p]
    Alarm I/O 1/1
    Serial Port N/A
    Built-in Mic Built-in two Mics
    Built-in Speaker N/A
    WIFI N/A
    Network 1 RJ45 10M/100M Base-TX Ethernet
    Video Output N/A
    Certifications
    EMC CE-EMC (EN 55032, EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
    FCC (FCC 47 CFR part15 B)
    Safety CE-LVD (EN 62368-1)
    UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
    Environment CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
    Protection IP67 (IEC 60529)
    IK10 (IEC 62262)
    General
    Power DC 12V±25%, PoE (IEEE 802.3af)
    Power consumption: Max 9.1w
    Power Interface Ø 5.5mm coaxial power plug

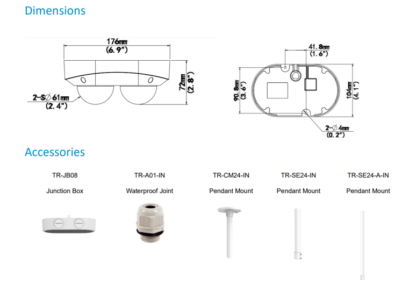

    Dimensions 176×104×72mm (6.9″ × 4.1″ ×2.8″)
    Weight 0.62kg(1.37lb)
    Material Metal
    Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    Storage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
    Surge Protection 4KV
    Reset Button Support
