6. Based on field tests. The number listed here is the maximum distance of one EAP625-Outdoor HD can reach and connect the devices. The real transmission range and recommended coverage may vary, according to the environment, receiving device, etc.
| HARDWARE FEATURES | |
|---|---|

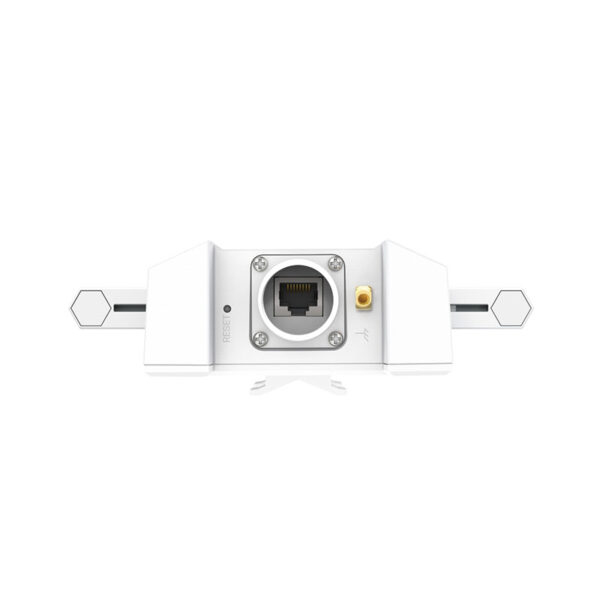

| Interface | 1x Gigabit Ethernet Port |
| Button | Reset |

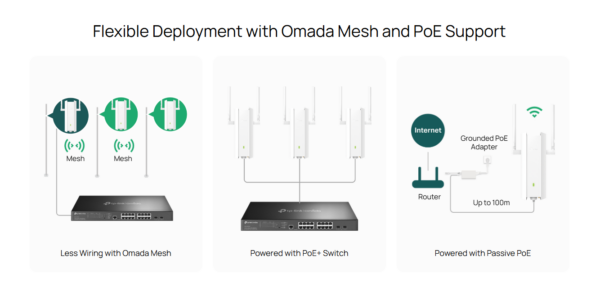

| Power Supply | • 802.3at PoE • 48V Passive PoENote: PoE adapter is not included. |
| Dimensions ( W x D x H ) | 11.0 x 7.2 x 2.2 in (280.4 × 182.2 × 56.9 mm)*5 |

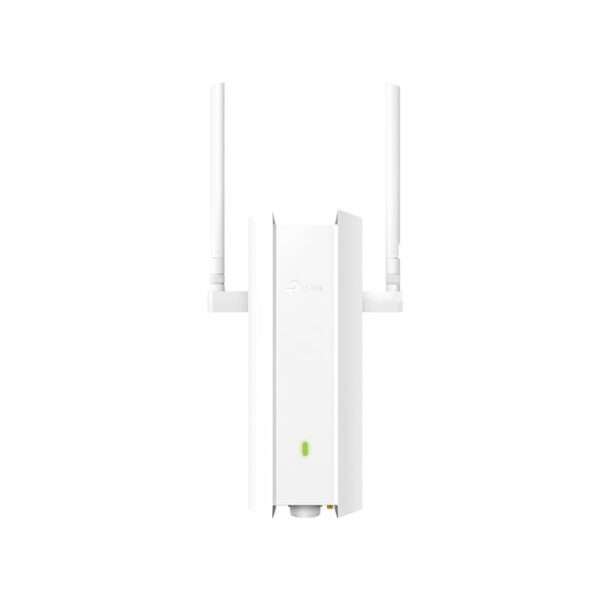

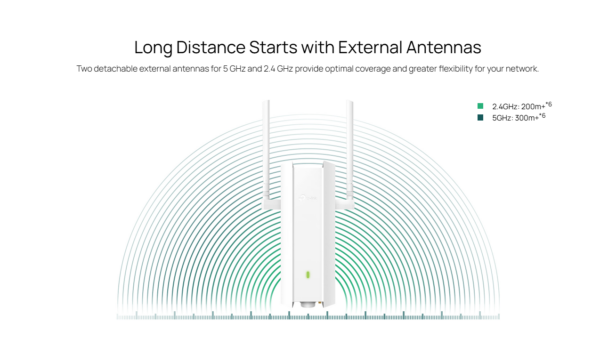

| Antenna Type | 2× External Dual-Band Omni Antennas • 2.4 GHz: 3.0 dBi; • 5 GHz: 5.0 dBi |
| Bluetooth | Yes |
| Weatherproof Enclosure | IP67 |

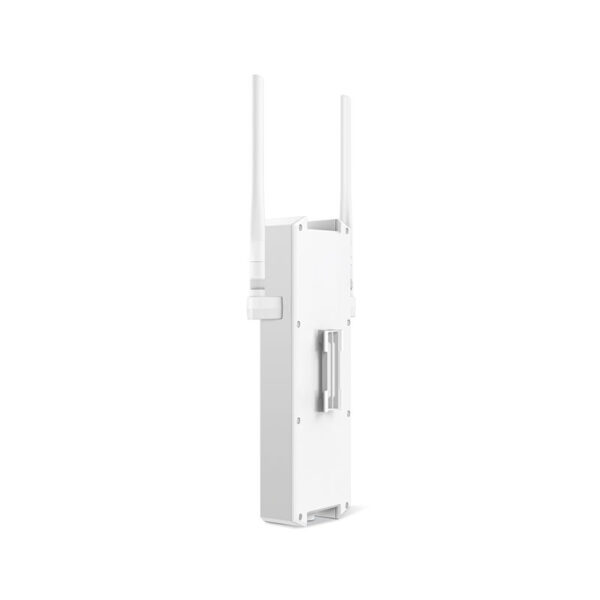

| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
|---|---|
| Concurrent Clients | 1,020+3 |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 5 GHz, and 2.4 GHz |

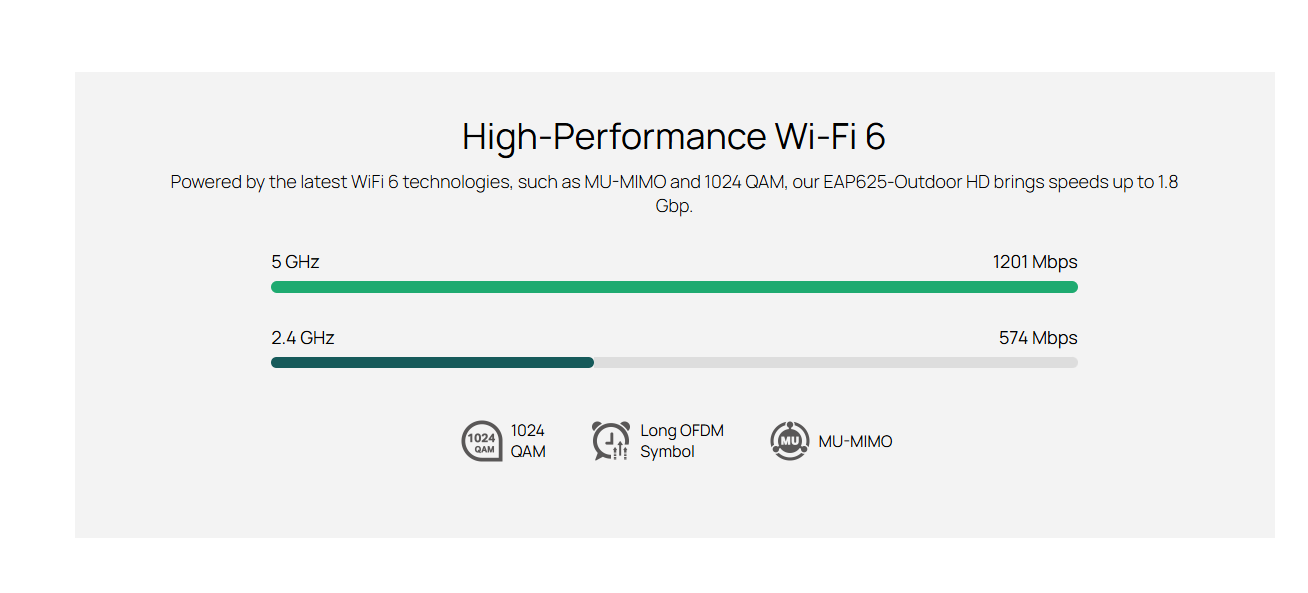

| Signal Rate | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • Mesh*4 • Seamless Roaming*4 • Automatic Channel Assignment • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs:16 (8 for each band) • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP |
| Wireless Security | • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication*4 • Maximum number of MAC Filter: 4,000 • Wireless Isolation between Clients • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise • 802.1X Support |
| Transmission Power | • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); • FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |

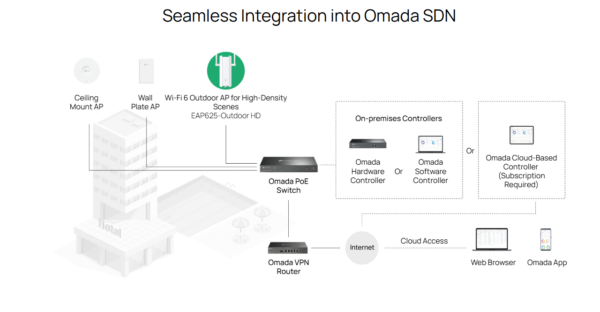

| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • EAP625-Outdoor HD • 2× Detachable Antennas • Installation Guide • Mounting Kit • Waterproof Kit |
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing |
