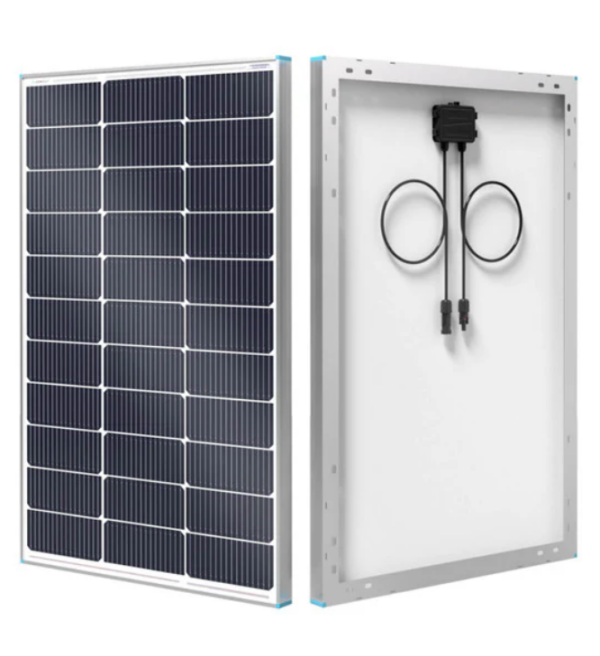

Renogy 100W N-Type Solar Panel

$119.00

Perfect for Class B vans – 7.5% smaller, 11.7% lighter

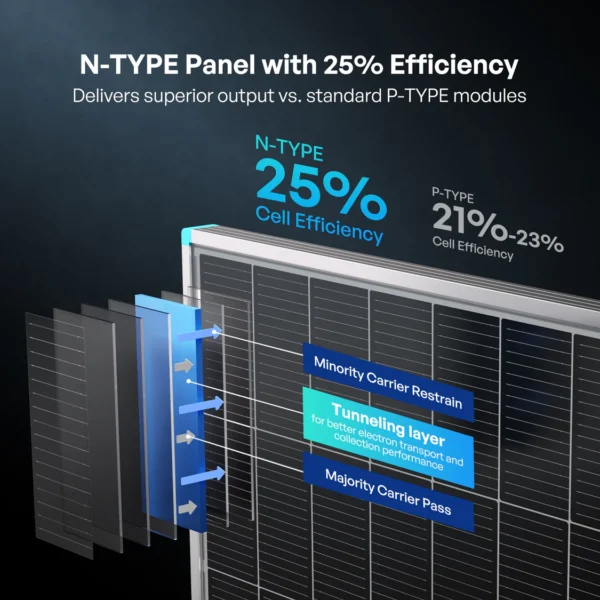

25% Efficiency with N-Type cells for higher output and durability
Single panel compatible with 12V & 24V systems for versatile use
Low temperature loss and high heat resistance for hot climates

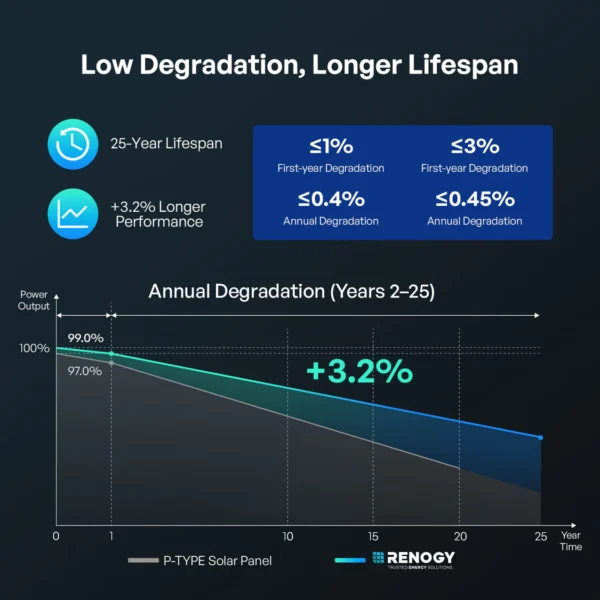

≤1% first-year power loss and 25-year 80% output
Dimensions: 100W: 34.1×22.8×1.2 inch; 195W: 49.7×30.1×1.2 inch

SKU: 100whre Category: Solar Panels

Description

Max Power at STC

100W

Open Circuit Voltage

22.79V（100W）

Short Circuit Current

5.31A（100W）

Optimum Operating Voltage

19.97V（100W）

Optimum Operating Current

5.01A（100W）

Maximum System Voltage

600VDC

Maximum Series Fuse Rating

15A

Module Efficiency

20.0%（100W）

Operating Temperature

-40°F~194°F / -40℃~90℃（100W）

Dimensions

865x578x30mm/34.1×22.8×1.2in（100W）

Weight

5.9kg/13.0lbs（100W）

Material and workmanship warranty

10 Years

Performance Warranty

5 year 95% output warranty；10 year 90% output warranty；25 year 80% output warranty

Certifications

Manufactured in a Certified ISO 9001 Facility；

➤
