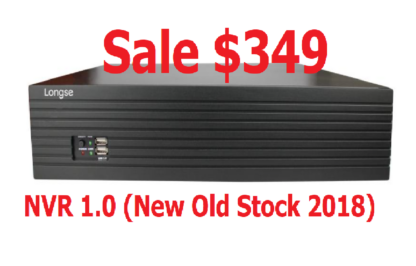

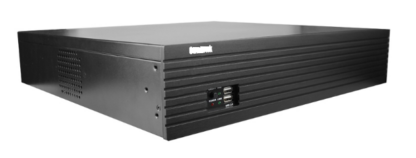

    Longse 8Mp / Full 4K 8MP 64CH NVR 1.0 Rackmount (app Free IP)

    Login For Best Price In Canada

    NVR3664L
    64CH H.265 NVR 2160P

    NOTE: Older Stock , Hard drive Not included)
    recommended for offline use due to age of the app.

    • Third-party Network Cameras Supported
    • Up to 12MP Resolution Recording and Playback
    • HD and VGA Output,HD Port up to 4K(3840*2160)
    • Support H.265+/H.265/H.264+/H.264 Video Format
    • Support 8 SATA up to 48TB Capacity
    • Support Alarm 16CH Input and 4CH Output
    SKU: NVR3664L Categories: ,
    SPECIFICATION
    Model NO. NVR3664L (App Free IP)
    System
    Main Processor  ARM Cortex A17 Quad-core Processor
    Operating System Embedded LINUX
    Video
    Input 64CH(3840×2160, 2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc)
    Output   1 VGA, 2 HD
    Audio
    Input 1 Port RCA
    Output 1 Port RCA(Linear, 1kΩ)
    Audio Bit Rate 64kbps
    Audio Compression standard AAC,G711u, G711a, ADPCM_DVI4
    Intercom support (two-way)
    Alarm
    Sensor Input  16
    Output   4
    Motion Detection   64 Channel, MD Zones: 396 (22 × 18)
    Trigger Events  Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output
    Display
    HD Output1 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    HD Output2 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    VGA      1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
    Display Split  64CHxD1/36CHxD1/25CHxD1/16CHxD1/9CHxD1/4CHxD1/

    1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k/1CHx12MP
    Digital Zoom   YES
    OSD Camera Title, Time, Recording, Motion Detection, Event Alarm
    Recording
    Video Compression   H265/H264/H265+/H264+
    Resolution   4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440)

    ,3MP(2048×1536),1080P(1920×1080),960P(1280×960),720P(1280×720),D1 (720×576/720×480)
    Record Rate   4k@35×25fp,5MP@58×25fp,4MP@64x25fp,3MP@64×25fp,

    1080P@64×25fp, 960P@64×25fp,720P@64×25fp, D1@64×25fpNTSC:12MP@29×30fp,4k@35×30fp

    5MP@58×30fp,4MP@64×30fp,3MP@64×30fp,

    1080P@64×30fp, 960P@64×30fp, 720P@64×30fp, D1@64×30fp
    Record Mode  Manual\Timer\Motion Detection\Alarm Input\Smart Event
    Playback & Backup
    Local Sync Playback

    4CH 4K@30fps, 6CH 5MP@30fps, 8CH 4MP@30fps,

    10CH 3M@30fps, 16CH 1080P@30fps,

    16CH 960P@30fps, 16CH 720P@30fps,16CH D1@30fps
    Decode Capability  4CH 4K(3840×2160)@30fps
    Remote Sync Playback  YES
    Search Mode  ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
    Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen,

    Frame Play ,Frame Rewind, Digital Zoom,tag,clip
    Backup Mode USB Device/Network
    Network
    Interface  2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
    Incoming Bandwidth  300MB
    Network Functions   TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
    Onvif  onvif S,onvif T
    Web Browser Edge,IE8-11, Google Chrome , Firefox ,Safari
    CMS Software Support  Windows 7/ Windows 8/Windows 10/MAC OS
    Cloud Support Yes
    Smart Phone iPhone, iPad, Android, Android Pad (App Free IP) NOTE: Older App.
    POE   N/A
    WIFI  UI N/A
    Storage
    Interface Type   8 SATA Hard Disk Interface (3.5″ SATA)
    Capacity  Up to 64TB capacity (Hard Drives Not Included)
    eSATA 1 eSATA interface
    General
    Language  UI Traditional Chinese, Simplified Chinese, English, Polish, Czech,

    Russian, Thai, Hebrew, Arabic, Bulgarian,German, French,

    Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian,

    Korean, Dutch, Greek,  Vietnamese
    USB Interface  2 USB 2.0 Interfaces ,1 USB 3.0 Interface
    RS485  2 Port
    Power Supply  AC 11o to 230V,3A
    Working Environment -10~55℃/10~90%
    Dimension(W×D×H) 2U, 440mm×450mm×95mm
    Weight 9.8Kg（without HDD）
