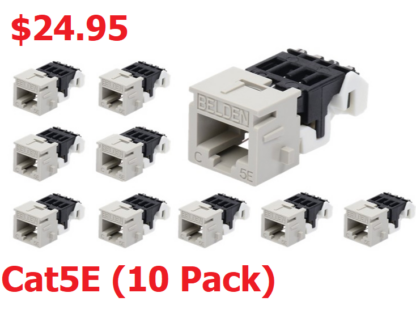

Suitable Applications: IBDN System 1200, TIA Category 5e, ISO Class D, 1000BASE-T
Standards
Data Category: Category 5e
TIA/EIA Compliance: Category 5e – TIA 568.C.2, Category 5 – ISO/IEC 11801:2002 Ed.2
Other Standards: FCC Part 68, Subpart F, IEC 60603-7
Safety Listing: ACA, c(UL)us Listed
Physical Characteristics (Each)
Height: 0.71 in
Width: 0.75 in
Depth: 1.25 in
Weight: 0.013 lbs
Connectors Materials
Front Connection: Copper Alloy with 50 µ inch Gold over Nickel Lead Frame
Rear Connection: Copper Alloy with Nickel Plating IDC
Connector Body: Plastic – UL940V-0
Electrical Characteristics
Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 minute
Current Rating: 1.500 A
Insulation Resistance: 500 M-Ohm Minimum
Max Contact Resistance: 20 mOhm
Termination Resistance: 2.5 mOhm
Temperature Range
Installation Temp Range: -10°C To +60°C
Storage Temp Range: -40°C To +70°C
Operating Temp Range: -10°C To +60°C
Mechanical Characteristics
Footprint/Type: MDVO
Plug /Jack Compatibility: RJ45
Termination Front Connection: Mated Connection
Termination Front Connection Durability: 1,000 cycles
