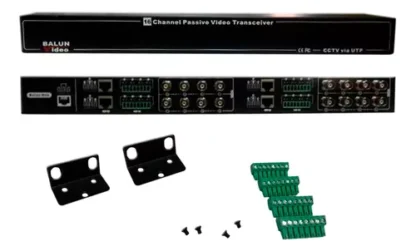

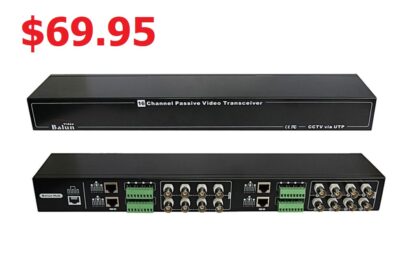

BALUN 16 PASSIVE CHANNELS HD TVI/CVI/AHD RackMount 1U

Real-time transmission over UTP cat5e/6
No power required
Compatible with all analog HD-TVI/CVI/AHD/CVBS cameras
Maximum video color up to 190m for HD-TVI 720P camera
Maximum video color up to 190 m for HD-TVI 1080P camera
Maximum video color up to 200 m for HD-TVI 3MP camera
Maximum video color up to 180 m for HD-TVI 5MP camera
Maximum video color up to 440 m for HD-CVI 720P camera
Yes adjusts DVR saturation, max. Up to 470m
Maximum video color up to 230m for HD-CVI 1080P camera
Maximum video color up to 230m for HD-CVI 4MP camera
Maximum video color up to 320m for HD-AHD 720P camera
Maximum video color up to 320m for HD-AHD 960P camera
Maximum video color up to 250m for HD-AHD 1080P camera
Maximum video color up to 180m for HD-AHD 3MP camera
Maximum video color up to 200m for HD-AHD 4MP camera
Max video color up to 200m for HD-AHD 5MP camera
Max video color up to 400m for CVBS camera
BNC
RJ45 female connector and detachable terminal blocks for UTP cat5e/6
Built-in state TVS (Transient Voltage Suppressors) for surge protection
Ripple filter design, anti-static design
Lightning protection design Grade: III
60 dB crosstalk and noise immunity
Exceptional interference rejection
Compact size and easy installation
Rack-mount, wall-mount wall and desk with 4 rubber legs
Black galvanized housing
