| Image Sensor1/2.4″ Progressive Scan CMOS | Max resolution3840*2160(8MP) |
| Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Bitrate32 Kbps – 16 Mbps | Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
| Audio InputBuilt-in Microphone, record with audio | Lens4 mm |
| Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° | Supplement Light TypeSmart Dual-Light, IR, White Light |
| Supplement Light RangeIR: up to 30 m, white Light: up to 20 m | Motion detection 2.0Supoort, include Human & Vehicle detection |
| Image EnhancementBLC, HLC, 3D DNR | Wide Dynamic Range120 dB WDR |
| ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP | APIOpen Network Video Interface Version (Profile S, Profile T, Profile G) |
| Region of Interest (ROI)1 fixed region for main stream | Privacy Mask4 programmable polygon privacy masks |
| General FunctionRotate mode, mirror, password protection, remote access | Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Image Sensor1/2.4″ Progressive Scan CMOS |
| Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video Bitrate32 Kbps – 16 Mbps |
| Audio InputBuilt-in Microphone, record with audio |
| Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG |
| Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Supplement Light RangeIR: up to 30 m, white Light: up to 20 m |
| Image EnhancementBLC, HLC, 3D DNR |
| ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Region of Interest (ROI)1 fixed region for main stream |
| General FunctionRotate mode, mirror, password protection, remote access |
| Max resolution3840*2160(8MP) |
| Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC |
| Lens4 mm |
| Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Supplement Light TypeSmart Dual-Light, IR, White Light |
| Motion detection 2.0Supoort, include Human & Vehicle detection |
| Wide Dynamic Range120 dB WDR |
| APIOpen Network Video Interface Version (Profile S, Profile T, Profile G) |
| Privacy Mask4 programmable polygon privacy masks |
| Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port |
| HousingMetal & Plastic | ColorWhite |
| StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB | Hardware ResetYes |
| Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W | Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C |
| Indoor/Outdoor UseIndoor/Outdoor | Interface ProtectionIP67 |

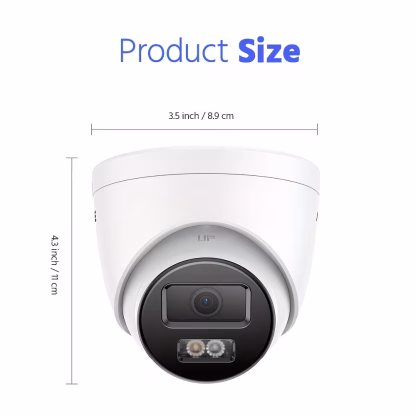

| Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3″ × 3.5″) | Weight0.7 lb./340 g |
ANNKE C800
Once the Better, Now Even Best
Capture Clear Night Detail by Smart Dual Light
Default smart dual light mode in night, the camera can clearly find the target at night by infrared light, If there is a moving target, the white light will start, infrared off, so as to obtain a clear colour image. In addition, you can also choose full infrared or full white light mode.
True 4K Ultra HD, View Every Detail

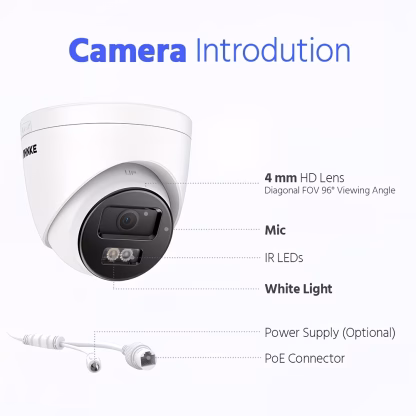

The 4 MM lens, with the high-end 1/2.4″ Progressive Scan CMOS sensor adjusted by professional engineers hundreds of times, covers up to FOV 96°, and delivers best 4K Ultra HD footages in all environments.
120 dB WDR, 3D DNR, BLC & HLC image enhancement algorithms help the camera capture breathtaking 4K images at any level of brightness.
Newly-Upgraded Human & Vehicle Detection – Perfection in Motion
It’s a leap in smart motion detection. The advanced human & vehicle detection will only detect a person or vehicle, which helps reduce unwanted motion alerts triggered by animals, or random inanimate objects, like waving branches, falling leaves, raindrops, etc.
Noise-Cancelling Audio
The built-in noise-cancelling microphone can filter the environment noise automatically, and pick up the voice from up to 20 ft away.
Listen-in Audio: Audio recording enhances the security coverage and the ability to interpret events. Record videos with vivid sound instead of silent footages.
Mute Function: Audio record might be regulated based on your location. If the audio surveillance is not allowed or you don’t want audio record, simply mute it.
Advanced H.265+ Video Format
ANNKE H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budget on buying more HDDs.
A Truly Weatherproof Security Camera
Built with IP67 weatherproof rating, the IP camera remains perfectly even being immersed in 1 m of water for 30 minutes. The camera has been tested in extremely hot & cold weather (-22 °F – 140 °F/-30 °C – 60 °C) and continues to record in exceptional 4K Ultra HD, without blur and no image distortion.
-22 °F | -30 °C
Cold Rating
Metal & ABS
Rugged Housing
140 °F | 60 °C
Hot Rating
IP67
Water Rating
Small on Prices, Big on Features

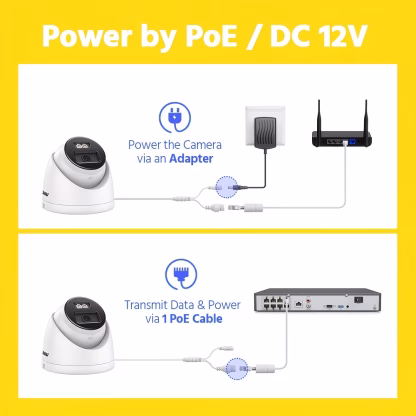

PoE or DC Power
Power on the camera via PoE with an NVR/PoE injector, or plug it to an outlet for power supply.

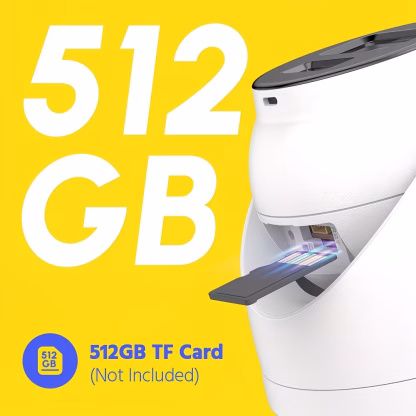

Local Storage
Supports up to 512 GB TF card (not included) for local video storage without monthly cloud fees.
Customized Motion Areas
Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.
Motion Alerts & Remote Access
Receive instant app pushes & email alerts when there are motion events. Control the camera remotely with smart devices.
