**Note Call Store / Email Before Purchasing This Service Online**
OR See our Installation page.
NOTE: This Package Includes 1 Hours install Time.
NOTE: This is a WIFI Camera. IF you change the WIFI Password You will need to reset the camera.
or a Separate Router / AP Can be installed at extra cost just for this camera.
DOORBell (Push Button) Wiring must already be in place , or it will cost Extra to Run power wire.
The Camera Works On AC-12V to 24V

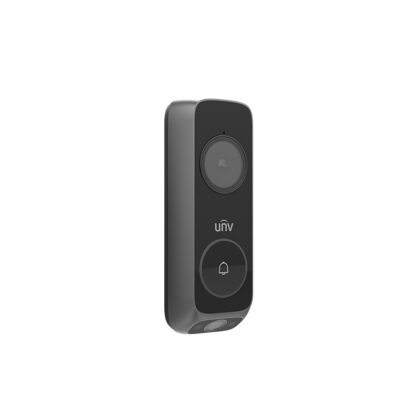

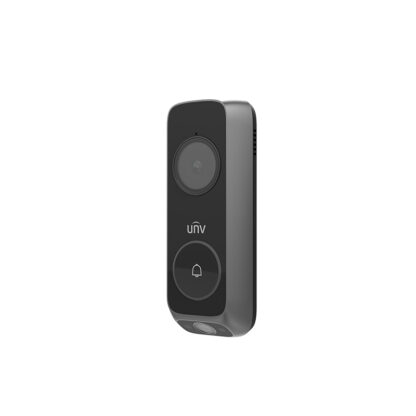

Model | ED525BWB |
Camera | |
Resolution main camera | 3MP |
Resolution sub camera | 2MP |
FOV main camera | Horizontal: 116°
Vertical: 82.5° |
FOV sub camera | Horizontal: 96.8°
Vertical: 52.6° |
Power kit | |
power kit | 240 mAH rechargeable lithium battery (for mechanical chime) |
Charge temperature | 0 °C to 45 °C |
Alarm Event | |
Motion detection alarm | Support |
UMD alarm | Supports human body detection alarm |
Package detection alarm | Support |
WiFi | |
Operating frequency band | 2.4 GHz and 5G Hz |
BLE function | Compatible, integrated BLE, supports network connection via Bluetooth |
Antenna type | Built in omnidirectional antenna |
WLAN | 802.11 b/g/n/ax |
Encryption | WPAPSK/WPA2PSK/WPA3personal |
Bluetooth | Support, integrated in WiFi chip |
SUB1G | |
SUB1G | Supported, for chime connection |
Chimes | Max. 3 wireless chimes or 1 mechanical chime |
Interface | |
Reset button | 1 micro switch for both pairing and reset |
Built in Mic | Support |
Built in speaker | Support |
Interface protocol | UNV private protocol |
Network protocol | TCP/IP, IPv4, HTTP, RTP, RTSP, NTP |
Illuminator | |
Illumination scheme | IR + white light |
Illumination distance | IR: 5 meters
White light: 2 meters |
Min. Illumination | 0.02 lux |
General | |
Dimensions | 55.8 mm × 156.5 mm × 27.9 mm |
Weight | Net weight: 142g
Gross weight: 295g |
Power consumption | 10W |
Installation method | With bracket installation, the power cable is installed on the bracket, and the doorbell is connected to the bracket through the contacts. |
Button | One call button |
Power source | Contact: AC 12 V to 24 V |
Operating temperature | -30 °C to 60 °C |
Ingress protection | IP65 |
WDR | |
WDR | Supports DWDR, main camera 80dB, sub camera 58dB |
Video | |
Video compression | H.265, H.264 |
Audio | |
Audio bit rate | 128 Kbps |
Audio sampling rate | 8K |
Audio compression | G711, MP3, PCM |
Certification | |
Certification | CB, CE LVD, CE EMC, CE RED, FCC SDOC, FCC ID |
