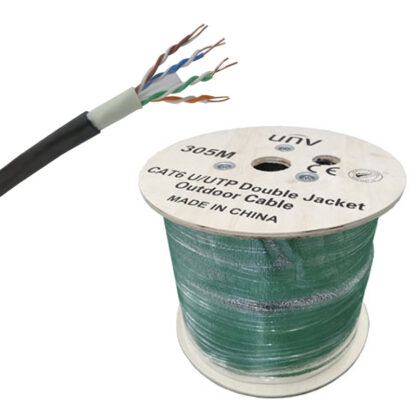

| Product model | CAB-LC3110B-BK-IN | |||
| Product specification | HSYV-6 4×2×0.52 |  |
||
| Test Standard | ISO/IEC11801、TIA-568-C.2、 YD/T1019 | |||

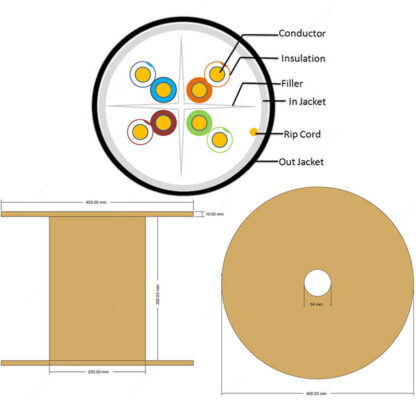

| Conductor | Material | 100% Pure OFC(Oxygen free copper) | ||
| AWG | 24 | |||
| Nom.O.D. (mm) | 0.55±0.02 mm | |||
| DC resistance | ≤95 Ω/km | |||
| Insulation | Material WIRE | HDPE high-density polyethylene | ||
| Thickness | 0.2±0.02 mm | |||
| Diameter | 0.93±0.05 mm | |||
| Color | Blue/White- Blue | Green/White-Green | ||
| Orange/White-Orange | Brown/White-Brown | |||
| Pitch | Offset pitch | ≤20 mm | ||
| Cable pitch | ≤120 mm | |||
| Sheath | Material (IN Jacket) | PVC(complies RoHS/REACH) | ||
| Material (OUT Jacket) | LDPE (Low-Density Polyethylene) | |||
| External O.D. | 6.9±0.3 mm | |||
| Color | Black | |||
| Tensile strength (PVC) | >13.5 Mpa | |||
| Thickness | 0.55±0.05 mm | |||
| Surface Printing | Letter height | 3.0±0.3 mm | ||
| Color | White | |||
| Print error & Space |
1±0.005 m | |||
| Case number | Yes | |||
| Packing | Wooden Shaft | |||
 |
||||
| Packing length | 305±1m | |||
| Rip-cord | Yes | Crossing backbone | Yes | |
| Ambient temperature | -20℃～60℃ | |||
