Specifications

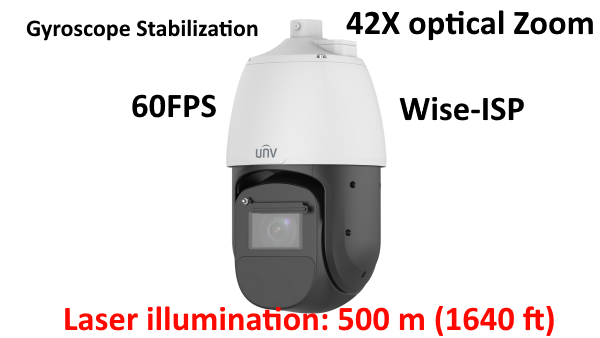

Model IPC6824ER-X42-W-VH2
Camera
Sensor 1/1.8″ CMOS
Min. Illumination Color: 0.0003 Lux (F1.2, AGC ON), 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 to 1/100000 s
WDR 150 dB
S/N > 56 dB
Lens
Focal Length 6 to 252 mm
Optical Zoom 42X
Digital Zoom 16X
Iris F1.2 to F4.6
Field of View (H) 59.47° (W) to 2.20° (T)
Field of View (V) 35.62° (W) to 1.24° (T)
Field of View (D) 73.14° (W) to 2.59° (T)
DORI
DORI Distance (Detect) 93.1 m to 4310.3 m (305.5 ft. to 14143.7 ft.)
DORI Distance (Observe) 37.2 m to 1564.1 m (122.1 ft. to 6116.1 ft.)
DORI Distance (Recognize) 18.6 m to 782.1 m (61.0 ft. to 2894.1 ft.)
DORI Distance (Identify) 9.3 m to 391.0 m (30.5 ft. to 1610.6 ft.)
Video
Video Compression H.265, H.264, MJPEG
Frame Rate
Main Stream: 4 MP (2688 × 1520), max. 60 fps
Sub Stream: 1080P (1920 × 1080), max. 60 fps
Third Stream: D1 (720 × 576), max. 60 fps
Video Bit Rate 128 Kbps to 16 Mbps
U-code Support
ROI Up to 8 areas
Video Stream Triple streams
Privacy Mask 24 areas, up to 8 areas per scene
OSD Up to 10 OSDs
Events
Basic Detection
Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed,
Object Left Behind
General Function
Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User
authentication, Alarm input
Audio
Audio Bitrate 128 Kbps
Two-way Audio Support
Suppression Support
3
IPC6824ER-X42-W-VH2
Audio Compression G.711U, G.711A
Sampling Rate 8 kHz, 16 kHz
Storage
Edge Storage MicroSD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Protocols
SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS,
DDNS, NTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API
Security
Strong Password, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS
1.2, TLS 1.3, WSSE and Digest Authentication for ONVIF
Client EZStation, UNV-Link, UNV-Link Pro
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Intelligent
Auto Tracking Support, target filtering: human, non-motor vehicle and vehicle
Multi-target Detection Support
People Counting Support people flow counting and crowd density monitoring
Smart Intrusion Prevention
Cross line detection, intrusion detection, enter area detection, leave area detection (support
false alarm filtering and the classification of human, non-motor vehicle and vehicle)
PTZ
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Preset Image Freeze Support
Preset Patrol 16 patrols, up to 64 presets for each patrol
Patrol Stay Time 15 s to 1800 s
Home Position Support
Tilt Range -15° to 90° (Upward tilt is negative)
Pan Speed 0.1°/s to 300°/s
Pan Range 0° to 360° (endless)
Tilt Speed 0.1°/s to 180°/s
Number of Presets 1024
BLC Support
White Balance Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction 2D/3D DNR
Flip Normal, Flip horizontal, Flip vertical, 180°
HLC Support
Defog Digital defog, Optical defog
Image Stabilization EIS (Gyroscope)
Interface
Audio I/O 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O 7/2
4
IPC6824ER-X42-W-VH2
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Serial Port 1 × RS485
Video Output 1 BNC
Illuminator
Wavelength 850 nm
IR On/Off Control Auto/Manual
Illumination Distance (IR) 500 m (1640.4 ft.)
Certification
Safety CE LVD (EN IEC 62368-1+ A11)
EMC CE EMC (EN 55032+ A11; EN IEC 61000-3-2; EN 61000-3-3+ A; EN 55035+ A11)
Environment CE ROHS (2011/65/EU; (EU)2015/863)
Protection
IP67 (IEC 60529+ AMD1+ AMD2)
IK10 (IEC 62262, Anti-Vandalism Except for the Front Window)
General
Power DC 24 V±25%, AC 24 V±25%, PoE (IEEE802.3bt)
Power Consumption ≤ 65.5W
Power Interface Wires with cold-pressed terminal
Dimensions Ø227 mm × 414 mm (Ø8.94″ × 16.30″) (Ø × H)
Weight 6.9 kg
Storage Environment -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 6 KV
Reset Button Support
Working Environment -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Heater Support
Compliance
NDAA Compliant Support
