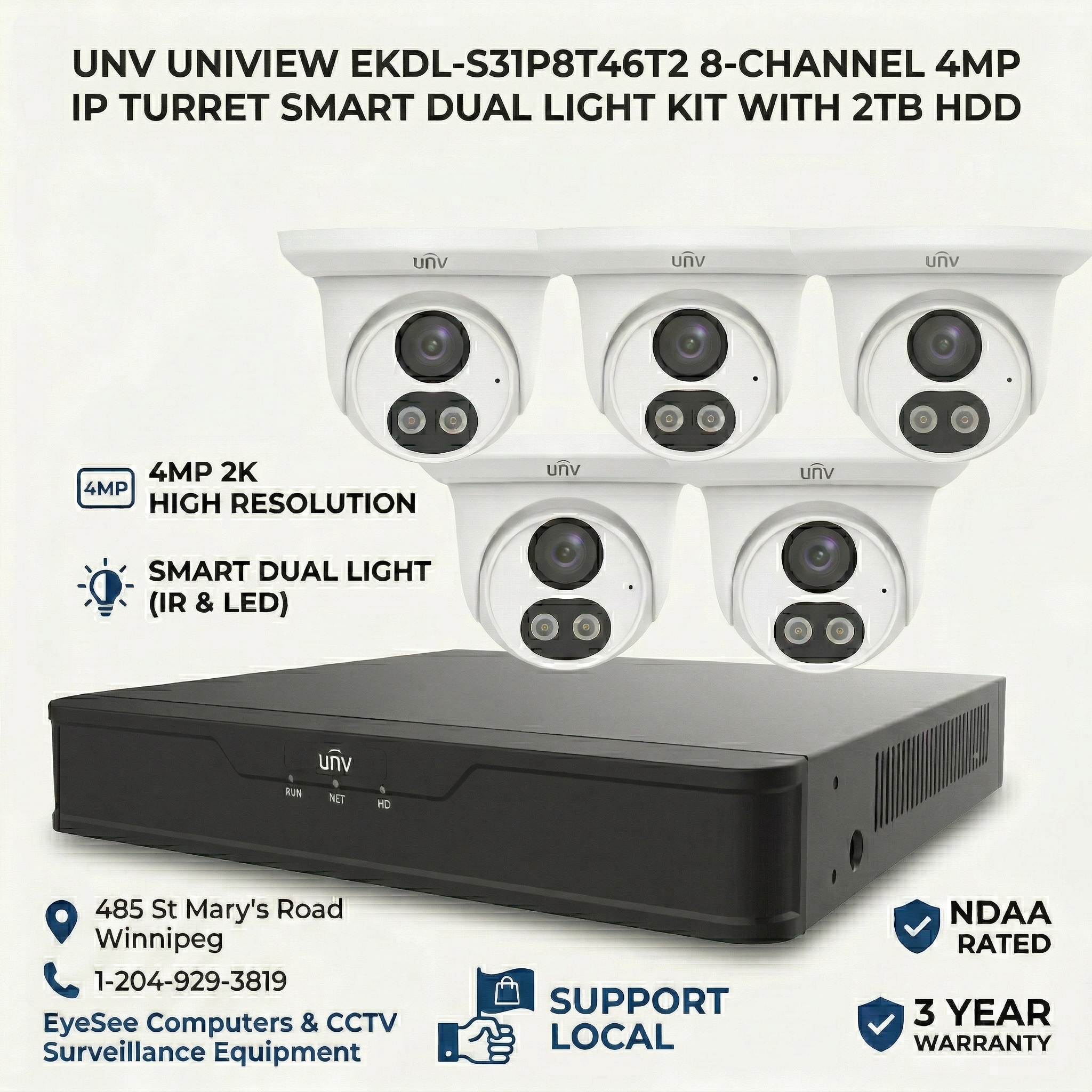

UNV EKDL-S31P8T46T2 6pcs 4MP IP Turret Duel Light camera Kit with 8CH & 2TB HDD

Login For Best Price In Canada

Get 5 % off for in-store pickup (Must Pre Pay online)

EC-T4F28M-DL

– Day/night functionality
– Smart duel light, up to 30 m (98 ft) IR/warm light distance
– 2D/3D DNR (Digital Noise Reduction)
– Ultra 265, H.265, H.264, MJPEG
– Built-in Mic
– ROI (Region of Interest)
– ONVIF Conformance
– Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
– Wide voltage ranges of ±25%
– IP67

NVR301-08S3-P8

– Support Ultra 265/H.265/H.264 video formats
– 8-channel input
– Plug & Play with 8 independent PoE network interfaces
– Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
– Support 1-ch HDMI, 1-ch VGA
– HDMI and VGA simultaneous output
– Up to 8MP resolution recording
– 1 SATA HDD
– Support cloud upgrade

SKU: EKDL-S31P8T46T2 Category: Tags: ,
Model NVR301-08S3-P8 Description
Video/Audio Input IP Video Input 8-ch
Network Incoming Bandwidth 64Mbps, Outgoing Bandwidth 48Mbps, Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
Video/Audio Output HDMI/VGA Output
HDMI 3840×2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
VGA 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz
Recording Resolution 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 8-ch
Corridor Mode Screen 3/4/5/7/9
Decoding Ultra 265/H.265/H.264
Liveview/Playback 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 4k@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30
Hard Disk 1 x SATA interface, Capacity up to 8TB for each disk
VCA Detection by Camera Face detection, Intrusion detection, Cross line detection, Audio detection, Enter Area, Leave Area
VCA Search Face Search, Behavior Search
External Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface, 2 x USB2.0
PoE Interface 8 RJ45 10M/100M self-adaptive Ethernet Interface, Max Power 30W for single port, Max 75W in total
Power Supply 52V DC, Power Consumption: ≤9 W (without HDD)
Working Environment -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions 260mm ×240mm × 46 mm (10.2″ × 9.4″ ×1.8″)
Weight ≤1.1kg (2.43lb)

Model EC-T4F28M-DL Camera
Resolution 4MP
Sensor 1/3.0″ CMOS
Min. Illumination Color: 0.01 lux (F1.6, AGC ON), 0 lux with IR
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment angle Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N >52dB
WDR DWDR
Lens
Lens type 2.8mm
Iris Type Fixed
Iris F1.6
Field of View (H) 97.0°
Field of View (V) 52.2°
Field of View (D) 107.5°
DORI
DORI Distance(Lens) 2.8mm
DORI Distance(Detect) 63.0m(206.7ft)
DORI Distance(Observe) 25.2m(82.7ft)
DORI Distance(Recognize) 12.6m(41.3ft)
DORI Distance(Identify) 6.3m(20.7ft)
Illuminator
Illumination Distance(IR) 30m
Illumination Distance(Warm Light) 30m
Wavelength 850nm
IR On/Off Control Auto/Manual
Video
Video Compression Ultra 265; H.265; H.264; MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Dual-Stream Yes
Audio
Audio Compression G.711A, G.711U, G.726
Two-Way Audio Yes
Interface
Alarm Input/Output 1/1
Ethernet 1 RJ45 10M/100M self-adaptive Ethernet Interface
Audio Input/Output 1/1 (2.0Vpp @ Input, 600Ω)
RS485 1 (for Pan/Tilt)
General
Power Supply 12V DC, ±25%, PoE (IEEE 802.3af)
Power Consumption Max 12W
Working Temperature -30°C ~ +60°C (-22°F ~ +140°F)
Working Humidity Humidity: 95% or less
Ingress Protection IP67
Impact Protection IK10
Weight 0.87kg
Dimension 130mm × 120mm × 260mm
