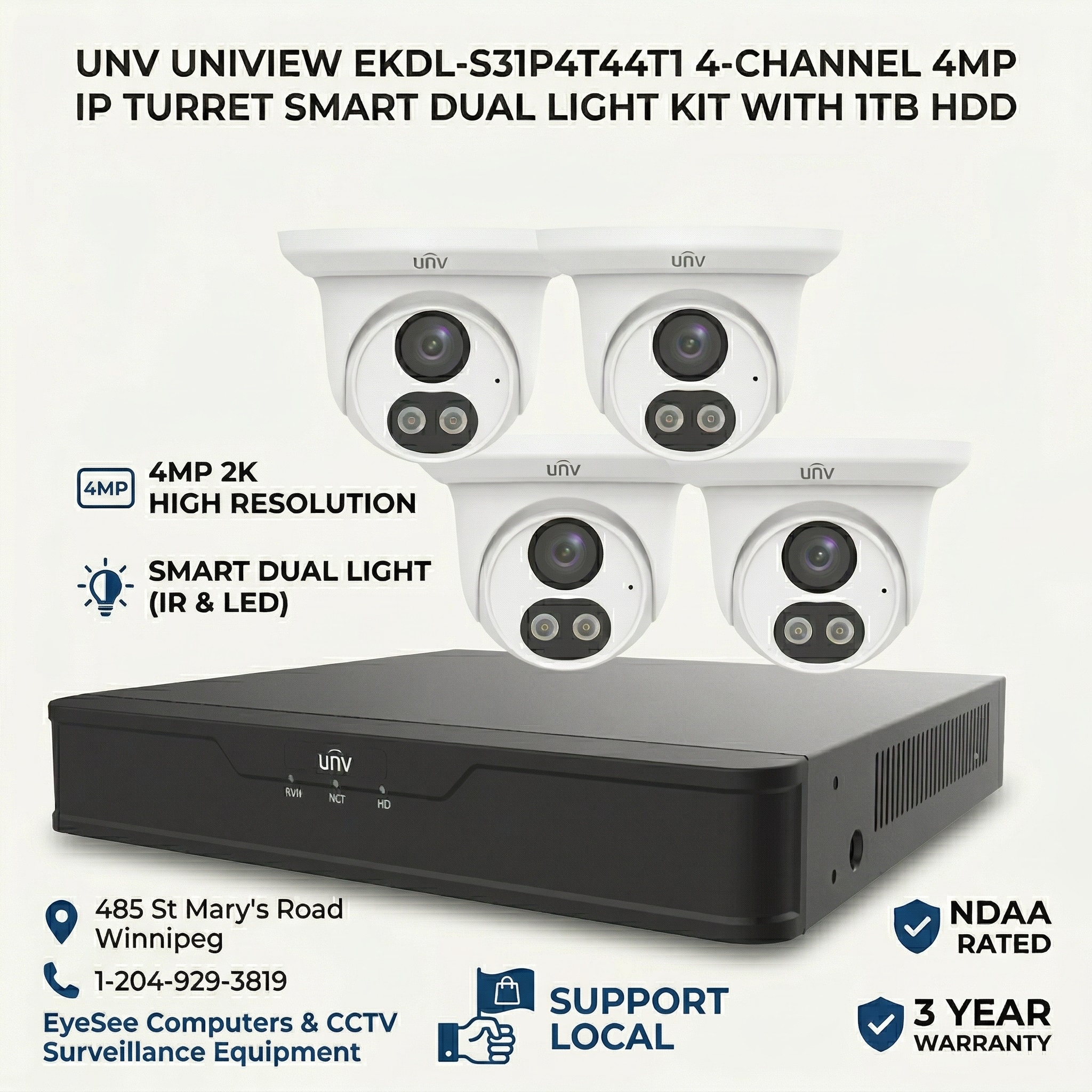

UNV EKDL-S31P4T44T1 4pcs 4MP IP Turret Duel Light camera Kit with 4CH & 1TB HDD

Login For Best Price In Canada

Get 5 % off for in-store pickup (Must Pre Pay online)

EC-T4F28M-DL

– Day/night functionality
– Smart dual light, up to 30 m (98 ft) IR/warm light distance
– 2D/3D DNR (Digital Noise Reduction)
– Ultra 265, H.265, H.264, MJPEG
– Built-in Mic
– ROI (Region of Interest)
– ONVIF Conformance
– Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
– Wide voltage ranges of ±25%
– IP67

NVR301-04S3-P4

– Support Ultra 265/H.265/H.264 video formats
– 4-channel input
– Plug & Play with 4 independent PoE network interfaces
– Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
– Support 1-ch HDMI, 1-ch VGA
– HDMI and VGA simultaneous output
– Up to 8MP resolution recording
– 1 SATA HDD
– Support cloud upgrade

SKU: EKDL-S31P4T44T1 Category: Tags: ,
Model NVR301-04S3-P4
Video/Audio Input
IP Video Input 4-ch Network
Incoming Bandwidth 64Mbps
Outgoing Bandwidth 48Mbps
Remote Users 128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
Video/Audio Output
HDMI Output 4K (3840×2160)/30Hz, 1920×1080/60Hz, 1600×1200/60Hz, 1280×720/60Hz
VGA Output 1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz
Recording Resolution 4K, 5MP, 4MP, 1080p, 720p, CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 4-ch
Corridor Mode Screen 3/4 Decoding
Decoding Format Ultra 265, H.265, H.264
Hard Disk
SATA 1 SATA Interface
Capacity Up to 8TB
Smart Features
VCA Detection by Camera Face, Intrusion, Cross line, Audio, Enter/Leave Area Detection
VCA Search Face Search, Behavior Search
External Interface
Network Interface 1 RJ45 10M/100M Ethernet
USB Interface 2 x USB2.0 (rear panel)
PoE Interface 4 RJ-45 10M/100M Ethernet
Max Power 30W (single port), 54W (total)
Supported Standards IEEE 802.3at, IEEE 802.3af
General
Power Supply 48V DC
Power Consumption ≤9W (without HDD)
Working Environment -10°C ~ +55°C, ≤ 90% RH (non-condensing)
Dimensions 260mm x 240mm x 46mm
Weight ≤1.1kg (without HDD)
Model EC-T4F28M-DL Camera
Camera Specifications
Resolution 4MP
Sensor 1/3.0″ CMOS
Min. Illumination Color: 0.01 lux, 0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
S/N Ratio >52dB
WDR DWDR
Lens
Type 2.8mm
Iris Fixed, F1.6
Field of View H: 97.0°, V: 52.2°, D: 107.5°
Illumination
IR Distance 30m
Warm Light Distance 30m
Wavelength 850nm
Video Specifications
Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 4MP @ 25fps; Sub Stream: D1 @ 30fps
Video Bit Rate 128 Kbps~6144 Kbps
Audio Specifications
Audio Compression G.711U, G.711A
Two-way Audio Not Available
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, HTTPS
User Levels Up to 32 users
Functionality
Defocus Detection Supported
Face Detection Supported
Motion Detection Supported
Temperature Alarm Supported
Power Supply 12V DC ±25%
Dimensions Φ104 x 97.3mm
Weight Net Weight: 0.3kg, Gross Weight: 0.4kg
Material Metal + Plastic
