Description

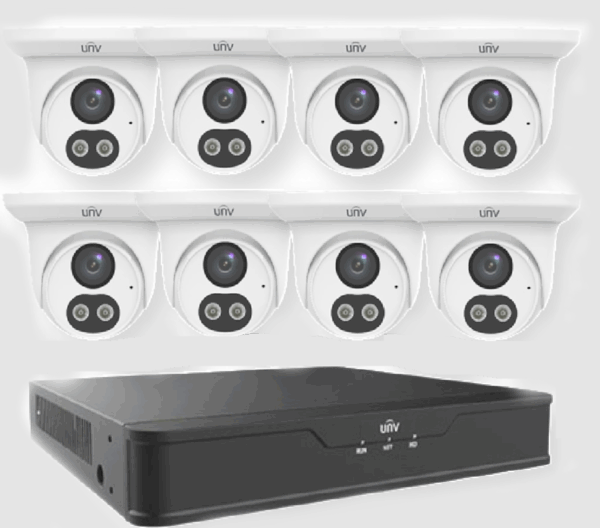

Model EC-T4F28M-DL Camera X8 Pcs **Smart Dual Light***
-Day/night functionality
-Smart Smart Dual Light, up to 30 m (98 ft) LED/ IR distance
-2D/3D DNR (Digital Noise Reduction)
-Ultra 265, H.265, H.264, MJPEG
-ROI (Region of Interest)
-ONVIF Conformance
-Wide temperature range: -30°C ~ +60°C (-22°F ~ 140°F)
-Wide voltage range of ±25%
-Built in Mic
-IP67
NVR301-08S3-P8 with 2TB HDD
-Support Ultra 265/H.265/H.264 video formats
-8-channel input
-Plug & Play with 8 independent PoE network interfaces
-Support mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
-Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840×2160) resolution
-HDMI and VGA simultaneous output
-Up to 4K resolution recording
-1 SATA HDD, up to 8TB (Including 2TB installed)
-Support cloud upgrade
| Model NVR301-08S3-P8 | Description |
| Video/Audio Input | IP Video Input 8-ch |
| Network | Incoming Bandwidth 64Mbps, Outgoing Bandwidth 48Mbps, Remote Users 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| Video/Audio Output | HDMI/VGA Output |
| HDMI | 3840×2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| VGA | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output | 1-ch, RCA |
| Audio Compression | G.711A, G.711U |
| Synchronous Playback | 8-ch |
| Corridor Mode Screen | 3/4/5/7/9 |
| Decoding | Ultra 265/H.265/H.264 |
| Liveview/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 4k@30, 1 x 5MP@30, 2 x 4MP@30, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30 |
| Hard Disk | 1 x SATA interface, Capacity up to 8TB for each disk |
| VCA Detection by Camera | Face detection, Intrusion detection, Cross line detection, Audio detection, Enter Area, Leave Area |
| VCA Search | Face Search, Behavior Search |
| External Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface, 2 x USB2.0 |
| PoE Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface, Max Power 30W for single port, Max 75W in total |
| Power Supply | 52V DC, Power Consumption: ≤9 W (without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions | 260mm ×240mm × 46 mm (10.2″ × 9.4″ ×1.8″) |
| Weight | ≤1.1kg (2.43lb) |

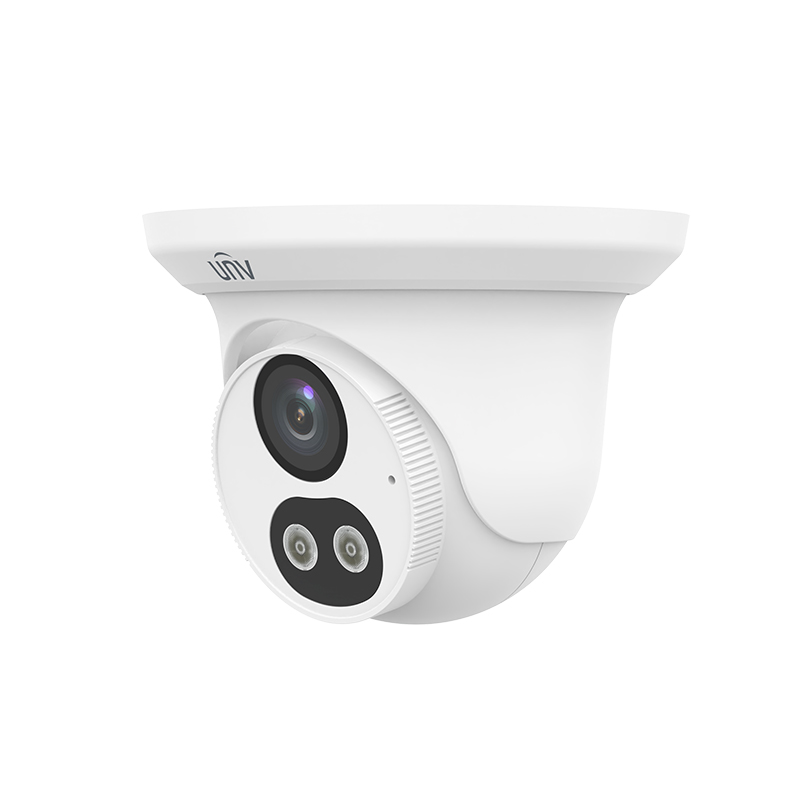

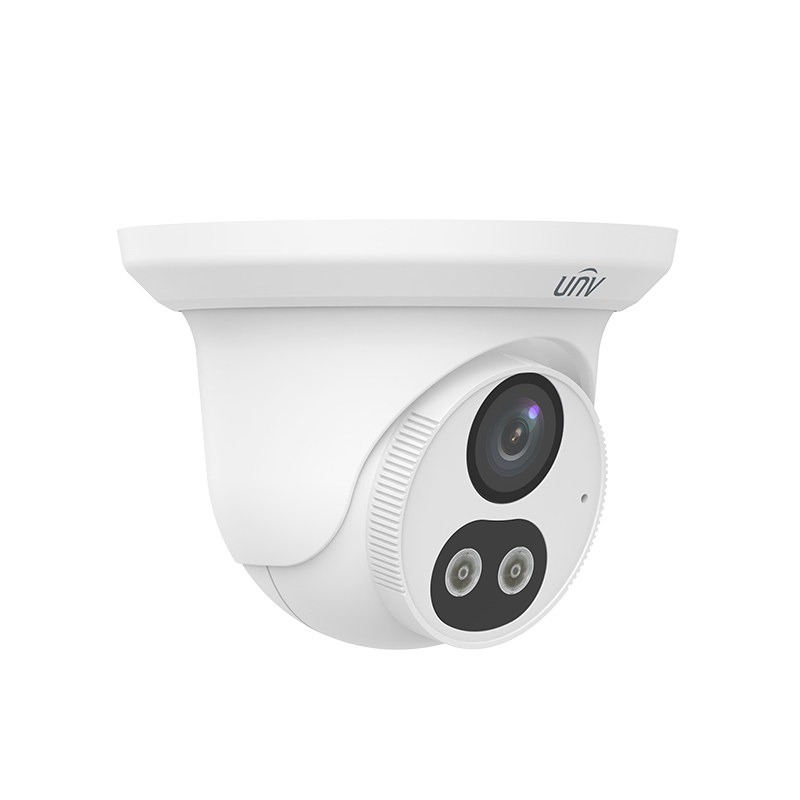

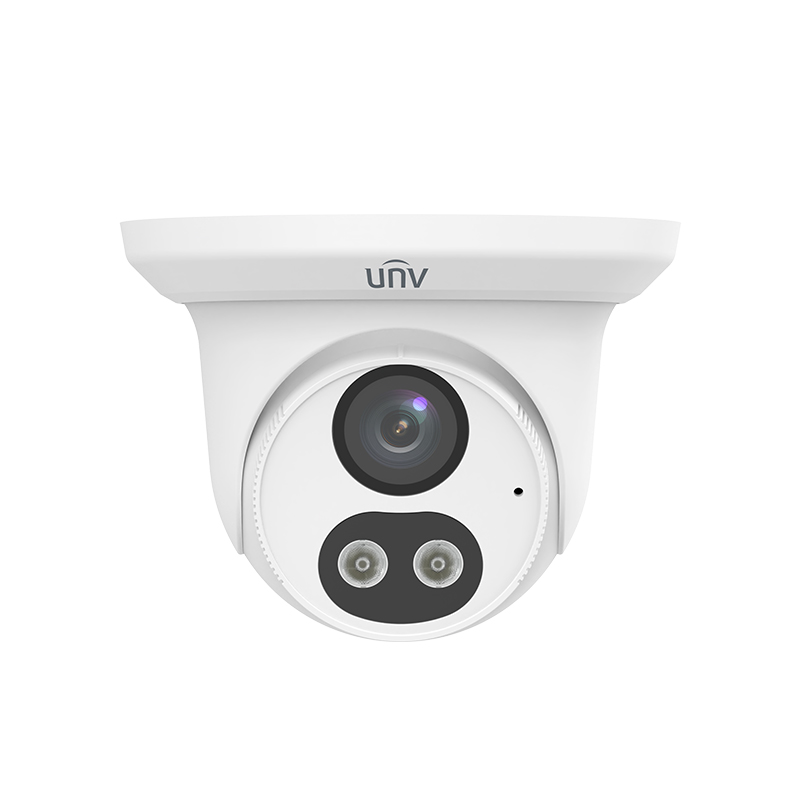

Model EC-T4F28M-DL Camera |
|
| Resolution | 4MP |
| Sensor | 1/3.0″ CMOS |
| Min. Illumination | Color: 0.01 lux (F1.6, AGC ON), 0 lux with IR |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | DWDR |
| Lens | |
| Lens type | 2.8mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Field of View (H) | 97.0° |
| Field of View (V) | 52.2° |
| Field of View (D) | 107.5° |
| DORI | |
| DORI Distance(Lens) | 2.8mm |
| DORI Distance(Detect) | 63.0m(206.7ft) |
| DORI Distance(Observe) | 25.2m(82.7ft) |
| DORI Distance(Recognize) | 12.6m(41.3ft) |
| DORI Distance(Identify) | 6.3m(20.7ft) |
| Illuminator | |
| Illumination Distance(IR) | 30m |
| Illumination Distance(Warm Light) | 30m |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Video | |
| Video Compression | Ultra 265; H.265; H.264; MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Dual-Stream | Yes |
| Audio | |
| Audio Compression | G.711A, G.711U, G.726 |
| Two-Way Audio | Yes |
| Interface | |
| Alarm Input/Output | 1/1 |
| Ethernet | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| Audio Input/Output | 1/1 (2.0Vpp @ Input, 600Ω) |
| RS485 | 1 (for Pan/Tilt) |
| General | |
| Power Supply | 12V DC, ±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 12W |
| Working Temperature | -30°C ~ +60°C (-22°F ~ +140°F) |
| Working Humidity | Humidity: 95% or less |
| Ingress Protection | IP67 |
| Impact Protection | IK10 |
| Weight | 0.87kg |
| Dimension | 130mm × 120mm × 260mm |
