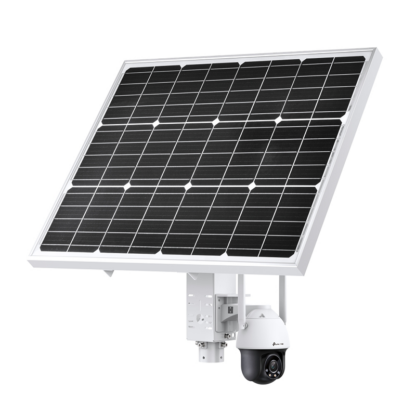

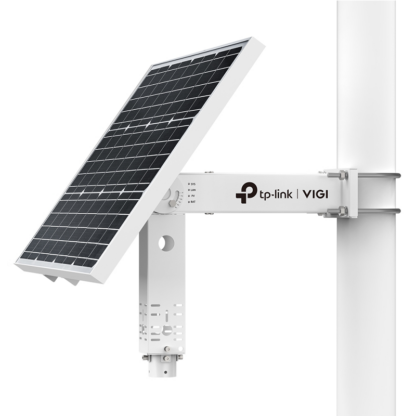

TP-Link VIGI SP6020 60W 20Ah Intelligent Solar Power Supply System

Login For Best Price In Canada

Get 5 % off for in-store pickup (Must Pre Pay online)
  • 60W Photovoltaic Panel and 20.8Ah/10.8V Lithium Battery
  • 3× DC Voltage Output Ports
  • Modular Design
  • 5°/15°/25°/35°/45°/55° Adjustable Angles
  • Intelligent Auxiliary Heating Technology
  • Maximum Power Point Tracking (MPPT) Charging Controller
  • IP66 Weatherproof
  • Remote Management and Simple Installation

**AP And Camera NOT Included. (Will work on most IP Cameras)*

Solar Panel (Photovoltaic Panel)
Power 60 W
Voltage 18 V

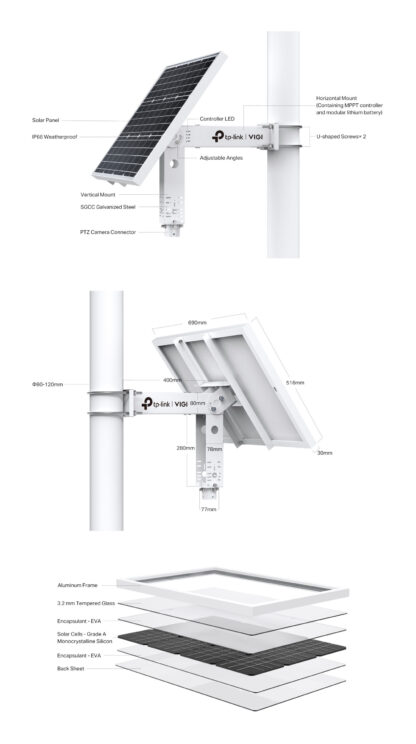

Dimensions (L x W x H) 690×516×30 mm (27.2×20.3×1.2 in)
Battery
Type Lithium
Intelligent Auxiliary Heat Yes
Battery Capacity 20.8 Ah
Voltage 10.8 V
Max. Output Voltage 12.6 V
Life More than 500 cycles
Dimension 242×70×55 mm (9.5×2.8×2.2 in)
Charging Condition • 0°C~45°C
• -30°C~45°C (With intelligent auxiliary heating)
Discharging Condition • -20°C~60°C
• -30°C~60°C (With intelligent auxiliary heating)
Angle Adjustment (Manual)
Range 5°/15°/25°/35°/45°/55°
HARDWARE
Interface • 1× 10/100 Mbps RJ45
• 1× Photovoltaic Panel Connector
• 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
Indicator LED • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)
• Color: Blue
SOFTWARE FEATURES
Load Control Yes
High and Low Temperature Protection Yes
Overdischarge Protection Yes
Power Consumption Statistics Yes
Displays Real-time Load Status Yes
Battery Level Display Yes
Time Zone Selection Yes
Region Selection Yes
Schedule Saving Yes
Firmware Remote Update Yes
Remote Reboot Yes
Local LAN Management Yes
Smart Charging Control -30°C~5°C
Account Management Yes
Remote Reset Yes
Remote Message Push Yes
OTHERS
Certification • CB, PSE (Battery)
• CE, FCC, VCCI, IC, IP66
Package Contents • VIGI SP6020
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Box Dimensions (W X D X H) 800×615×225 mm (31.5×24.2×8.9 in)
Weight • Product Weight: 13 kg
• Package Weight: 14.5 kg
Environment • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)
• Operating Humidity: 10%~90%RH, Non-condensing
