| Battery | |
|---|---|
| Type | Lithium |
| Intelligent Auxiliary Heat | Yes |
| Battery Capacity | 93.6Ah(Max),31.2Ah(Per Lithium Battery) |
| Voltage | 10.95 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 500 cycles† |
| Dimension | • 9.4×2.9×2.8 in (240×74×72 mm) (Per Lithium Battery) |
| Charging Condition | • 0°C~45°C • -30°C~45°C (With intelligent auxiliary heating) |
| Discharging Condition | • -20°C~60°C • -30°C~60°C (With intelligent auxiliary heating) |
| HARDWARE | |
|---|---|

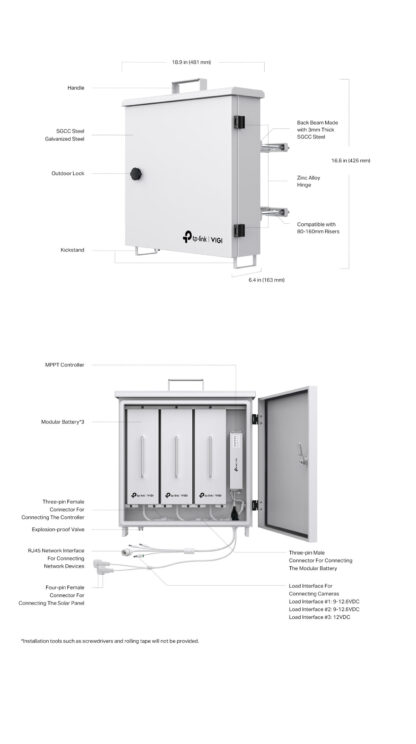

| Interface | • 1× Three-pin Female Connector For Connecting The Controller • 1× Three-pin Male Connector For Connecting The Modular Battery • 2× Four-pin Female Connectors For Connecting The Solar Panel • 1× 10/100 Mbps RJ45 • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |
| Indicator LED | • Quantity: 6 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 3× BAT Indicator) • Color: Blue |
| SOFTWARE FEATURES | |
|---|---|
| Load Control | Yes |
| High and Low Temperature Protection | Yes |
| Overdischarge Protection | Yes |
| Power Consumption Statistics | Yes |
| Displays Real-time Load Status | Yes |
| Battery Level Display | Yes |
| Time Zone Selection | Yes |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot | Yes |
| Local LAN Management | Yes |
| Smart Charging Control | -30°C~5°C |
| Account Management | Yes |
| Remote Reset | Yes |
| Remote Message Push | Yes |
| OTHERS | |
|---|---|
| Certification | • CB, PSE (Battery) • CE, FCC, VCCI, IC, IP66 |
| Package Contents | • VIGI PS90 • Installation Guide • Waterproof Cable Attachments • Mounting Accessories • Extension Cable • Box Key |
| Box Dimensions (W X D X H) | 18.9×16.8×6.4 in (481*426*163 mm) |
| Weight | • Product Weight: 16.5 kg • Package Weight: 24 kg |
| Environment | • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) • Operating Humidity: 10%~90%RH, Non-condensing |
