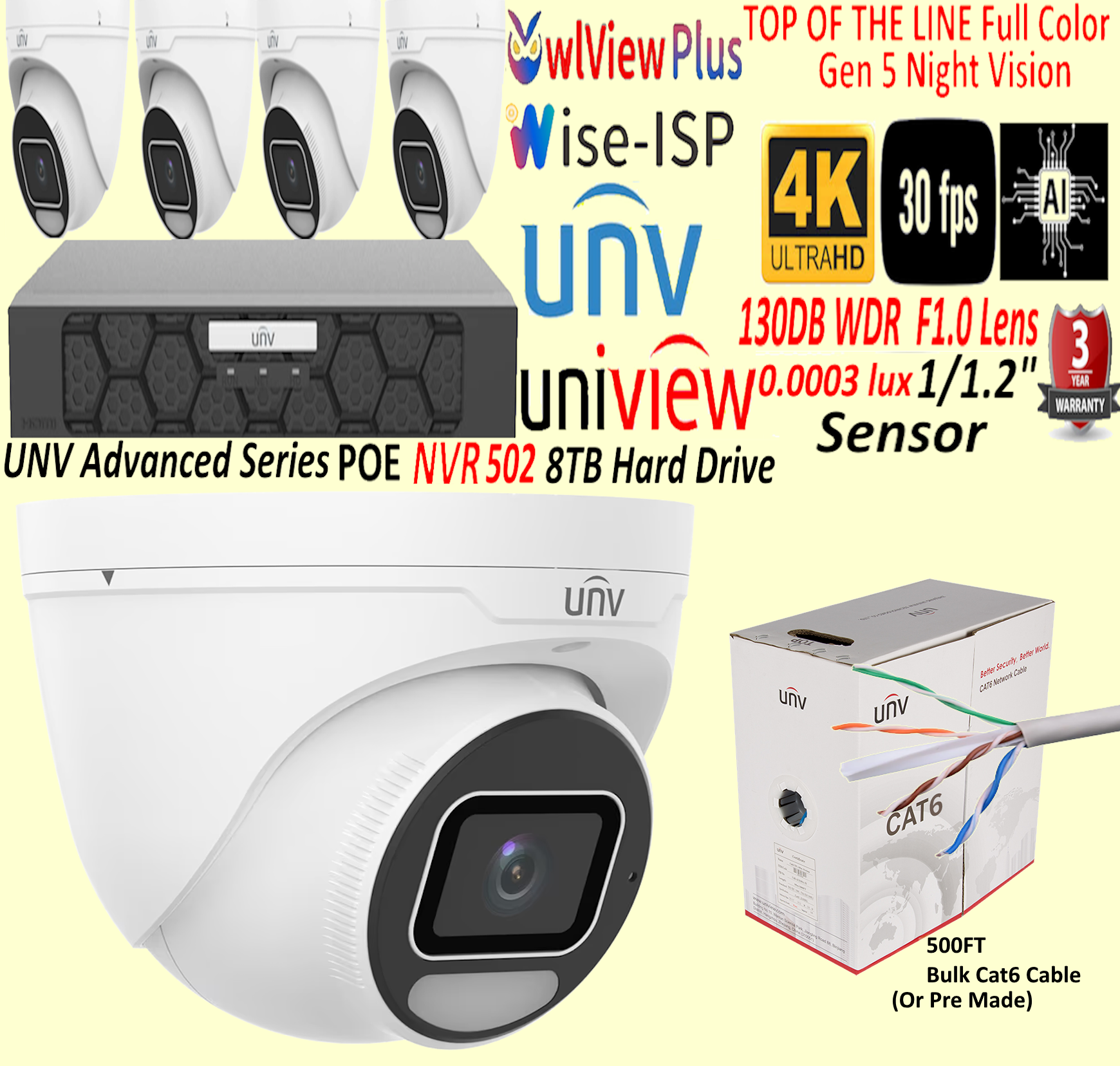

Full Ai OwlView plus 4 Camera Kit (With 8CH NVR 8TB Hard Drive And 500FT of Cat 6 Cable
This includes 4 Cameras install With 8CH Advanced Series NVR with 8TB Hard Drive.
Install Time onsite is 8-10 hours.
Building on the proven performance of the OwlView line, Uniview proudly introduces the OwlView Plus Series—a new generation of professional cameras designed to elevate low-light imaging and smart detection to new heights.
Upgraded Night Performance

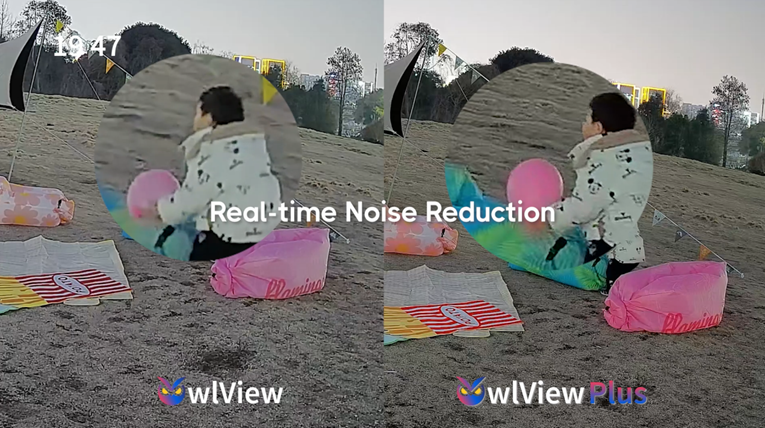

The OwlView Plus Series takes night vision to the next level with Uniview’s proprietary Wise-ISP technology, delivering enhanced clarity, color accuracy, and low-light detail.
Equipped with a 1/1.2″ ultra-large sensor—the largest ever in an OwlView camera—and a F1.0 ultra-large aperture, the OwlView Plus captures true 4K resolution with remarkable brightness and definition. Even in near-total darkness, images remain clear, vibrant, and free of smearing or noise.
Upgraded Smart Functions
Enhanced night performance lays the foundation for smarter analytics.

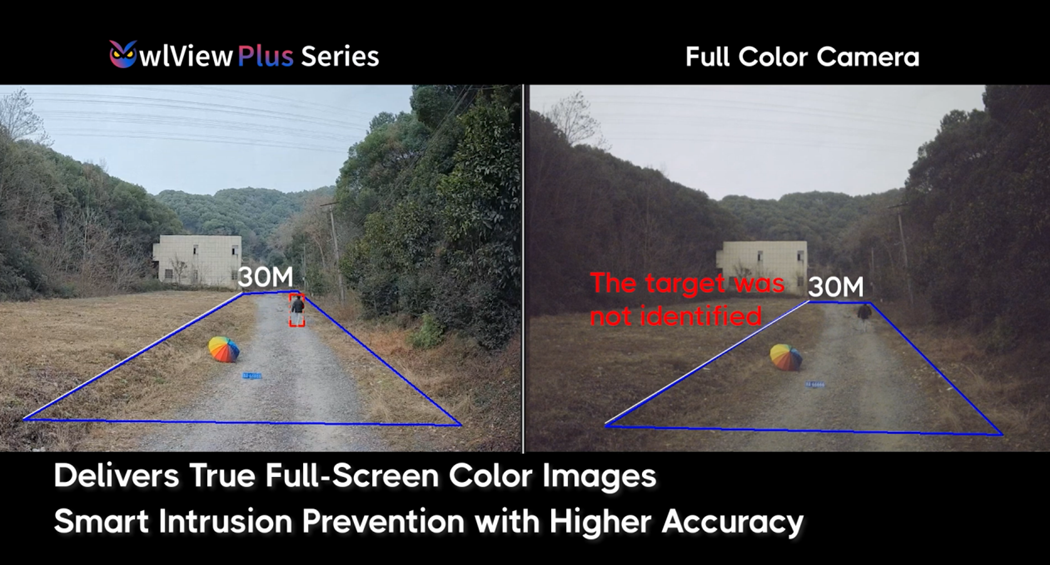

The OwlView Plus Series comes equipped with Smart Intrusion Prevention, Object Left/Removal Detection, Color Search, and Auto Scene Match—all optimized for better accuracy and fewer false alarms.
Whether it’s identifying humans, motor vehicles, or non-motor vehicles, or retrieving specific colors from recorded footage, these features ensure precise detection and faster forensic search, 24/7.
Reliable Hardware
Designed for real-world challenges, the OwlView Plus Series is built to endure.
It features IK10-rated impact resistance, IP67-rated weatherproofing, a full metal housing, and full-tail wiring for secure installation. With 130dB True WDR, it adapts automatically to changing lighting conditions. An integrated microphone provides clear audio with a 20% longer pickup range compared to the previous generation.
With advanced optics, intelligent features, and rugged hardware, the OwlView Plus Series empowers professionals to see more, know more, and protect more—day or night.
| IPC3638SE-ADF28K-WP-I1 | ||||||||
| Camera | ||||||||
| Max Resolution | 8 MP | |||||||
| Sensor | 1/1.2″ CMOS | |||||||
| Min. Illumination | Colour: 0.0003 lux ( F1.0, AGC ON) | |||||||
| Shutter | Auto/Manual, 1 to 1/100000 s | |||||||
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° | |||||||
| S/N | >56 dB | |||||||
| WDR | 130 dB | |||||||
| Lens | ||||||||
| Focal Length | 2.8 mm | |||||||
| Iris Type | Fixed | |||||||
| Iris | F1.0 | |||||||
| Field of View (H) | 105.0° | |||||||
| Field of View (V) | 56.1° | |||||||
| Field of View (D) | 121.0° | |||||||
| Lens Type | Fixed | |||||||
| DORI (Night) | ||||||||
| DORI Distance (Lens) | 2.8mm | |||||||
| DORI Distance (Detect) | 43.4 m (142.5 ft) | |||||||
| DORI Distance (Observe) | 17.4 m (57.0 ft) | |||||||
| DORI Distance (Recognize) | 8.7 m (28.5 ft) | |||||||
| DORI Distance (Identify) | 4.3 m (14.3 ft) | |||||||
| Illuminator | ||||||||
| Supplemental Light | Warm light | |||||||
| Illumination Distance (Warm Light) | 30 m (98.4 ft) | |||||||
| Light On/Off Control | Auto/Manual | |||||||
| Video | ||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||
| H.264 Code Profile | Baseline profile, Main profile, High profile | |||||||
| Frame Rate-Main Stream | 8MP (3840 × 2160), Max 30 fps; 5.3MP (3072 × 1728), Max 30 fps; 3.6MP (2560 × 1440), Max 30 fps; 1080P (1920 × 1080), Max 30 fps; 720P (1280 × 720), Max 30 fps | |||||||
| Frame Rate-Sub Stream | 1080P (1920 × 1080), Max 30 fps; 720P (1280 × 720), Max 30 fps; D1 (720 × 576), Max 30 fps; 640 × 360, Max 30 fps; 2CIF (704 × 288), Max 30 fps; CIF (352 × 288), Max 30 fps | |||||||
| Frame Rate-Third Stream | D1 (720 × 576), Max 30 fps; 640 × 360, Max 30 fps; 2CIF (704 × 288), Max 30 fps; CIF (352 × 288), Max 30 fps | |||||||
| Video Bit Rate | 128 Kbps to 16 Mbps | |||||||
| U-code | Support | |||||||
| OSD | Up to 8 OSDs | |||||||
| Privacy Mask | Up to 4 areas | |||||||
| ROI | Support | |||||||
| Video Stream | Triple streams | |||||||
| Image | ||||||||
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 | |||||||
| Digital Noise Reduction | 2D/3D DNR | |||||||
| Smart IR | Support | |||||||
| Auto Scene Match (ASM) | Support | |||||||
| Flip | Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise | |||||||
| Dewarping | N/A | |||||||
| HLC | Support | |||||||
| BLC | Support | |||||||
| Defog | Digital defog | |||||||
| Intelligent | ||||||||
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) | |||||||
| Statistical Analysis | N/A | |||||||
| People Counting | Support people flow counting and crowd density monitoring | |||||||
| Attribute Collection | SIP with color retrieval | |||||||
| Events | ||||||||
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind | |||||||
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output | |||||||
| Audio | ||||||||
| Audio Compression | G.711U, G.711A | |||||||
| Audio Bitrate | 64 Kbps | |||||||
| Two-way Audio | Support | |||||||
| Suppression | Support | |||||||
| Sampling Rate | 8 kHz | |||||||
| Storage | ||||||||
| Edge Storage | Micro SD, up to 512 GB | |||||||
| Network Storage | ANR, NAS (NFS) | |||||||
| Network | ||||||||
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH | |||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK | |||||||
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator | |||||||
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF | |||||||
| Client | UNV-Link, UNV-Link Pro, EZStation | |||||||
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ | |||||||
| Interface | ||||||||
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] | |||||||
| Alarm I/O | 1/1 | |||||||
| Serial Port | N/A | |||||||
| Built-in Mic | Support | |||||||
| Built-in Speaker | N/A | |||||||
| WIFI | N/A | |||||||
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet | |||||||
| Video Output | N/A | |||||||
| Certification | ||||||||
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130) FCC (FCC 47 CFR part15 B) |
|||||||
| Safety | CE-LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
|||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | |||||||
| Protection | IP67 (IEC 60529) IK10 (IEC 62262) |
|||||||
| General | ||||||||
| Power | DC 12 V±25%, PoE (IEEE 802.3 af) | |||||||
| Power Consumption | Max 6.0 W | |||||||
| Power Interface | Ø5.5 mm coaxial power plug | |||||||
| Dimensions | Ø129 × 110 mm (Ø5.1″ × 4.3″ ) (Ø × H) | |||||||
| Weight | 0.69 kg (1.53 lb) | |||||||
| Material | Metal | |||||||
| Working Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Storage Environment | -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing) | |||||||
| Surge Protection | 4 KV | |||||||
| Reset Button | Support | |||||||
| Web Client Language | 20 Languages: English,Traditional Chinese, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese | |||||||
