Image Sensor |
Sensor | High Definition Color CMOS Sensor |
| Display Resolution | 2688*1520 (4.0M Pixels) | |
| Min. Illumination | N/A (Without IR Illuminator) | |
Lens |
Lens Type | Glass Lens |
| focal length | 1.9mm | |
| Aperture | F 2.0 | |
| Angle of view | Diagonal:170°,Horizontal:152°,Vertical:91° | |
Video |
Image Compression | H.265/H.264 |
| Image Frame Rate | Max 25fps (2K) | |
| Resolution | 2K(2560×1440),1080P(1920×1080),720P(1280 x 720) | |
| Stream | Dual stream | |
| HDR | Support HDR | |
| Flip image | Flip and mirror | |
| Infrared mode | 1pcs 850nm SMD IR-LEDs | |
| Night mode | Manual and automatic modes | |
| Night visibility | 5 m | |
Audio |
Input/output | Build-in mic and speaker, support full duplex real-time 2-way Audio |
| Audio Compression | AAC | |
Network |
Ethernet | Transfer via Type C to RJ45 |
| Wireless Standard | 2.4GHz&5GHz,IEEE802.11b/g/n/ac | |
| Wireless Security | WPA, WPA2 | |
| Remote Access | P2P | |
| Wi-Fi configuration mode | Support scan QR code , sound wave to add camera | |
| Network Protocol | IP、TCP、UDP、SMTP、FTP、RTSP | |
Software Features |
Motion Detection | Alarm via E-Mail, upload alarm snapshot to FTP ,
push message to mobile phone and push stream to Cloud |
| Sound Detection | Alarm via E-Mail, upload alarm snapshot to FTP ,
push message to mobile phone and push stream to Cloud |
|
| Face Detection | Alarm via E-Mail, upload alarm snapshot to FTP ,
push message to mobile phone and push stream to Cloud |
|
| Face Recognition | Support up to 20 family members (video-subscription) | |
| Amazon Alexa | Yes | |
| Google Assistant | Yes | |
| Privacy Block | Yes | |
| User Accounts | Three levels user role | |
| Firewall | Supports IP Filtering | |
| Custom ringtones | Support to customize exclusive ringtones through mobile APP | |
| Micro SD card | Support maximum 128GB Micro SD card storage | |
| Foscam NVR | Compatible with Foscam NVR | |
Foscam VMS |
Compatible with Foscam VMS | |
Visitors leave a message |
Support the push of guest messages to the APP | |
Reset |
Reset button is available | |
Power |
Power Supply | AC8~24V or DC5~30V |
| Power Consumption | 5 Watts (Max.) | |
Physical |
Dimension(LxWxH) | 115(L)x45 (W)x25 (H) mm |
| Net Weight | 125g | |
Accessories |
Power Kit | 1pcs(work with existing electronic chime ) |

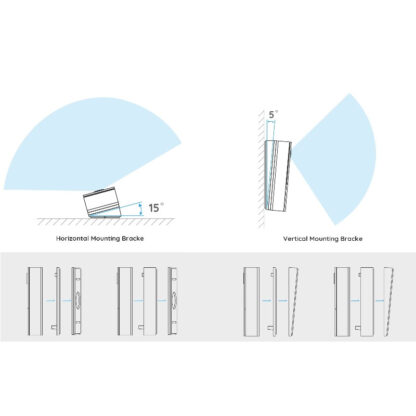

| Leveler | 1pcs(Pre-install the Leveler on the mounting plate) | |
| Mounting bracket | Flat Mounting Plate*2pcs,
Horizontal Wedge*1pcs, Vertical Wedge*1pcs |
|
| Connector | U-type Connector*1pcs,Fork Connector*1pcs | |
| Doorbell Wire Extenders and Nuts | With 1pcs extra screw for backup (for AC power of Doorbell),
pre-install 2 Wire Extenders on the Doorbell bod |
|
| L-shape Screwdriver | 1pcs | |
| Screws | Wall Mount Screws*1sets,Anti-theft Screws*2pcs | |
Environment |
Waterproof | IP65 |
| Operating Temperature | -20°C~ 50°C (-4°F ~ 122°F) | |
| Operating Humidity | 20% ~ 85% non-condensing | |
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) | |
| Storage Humidity | 0% ~ 90% non-condensing | |
| Certification | CE、FCC、UL、ERP、RoHS、WEEE | |
