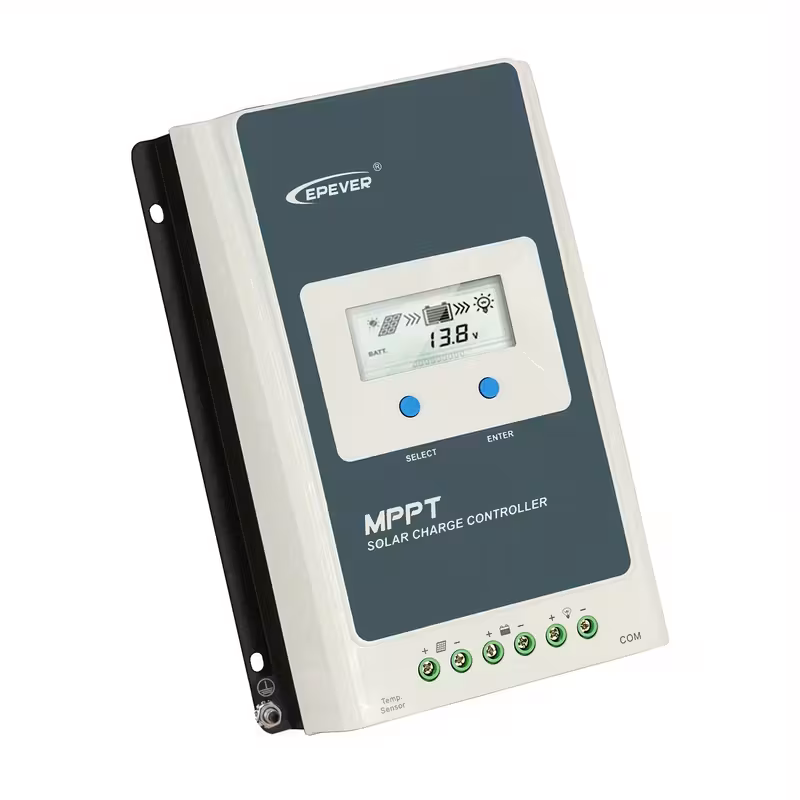

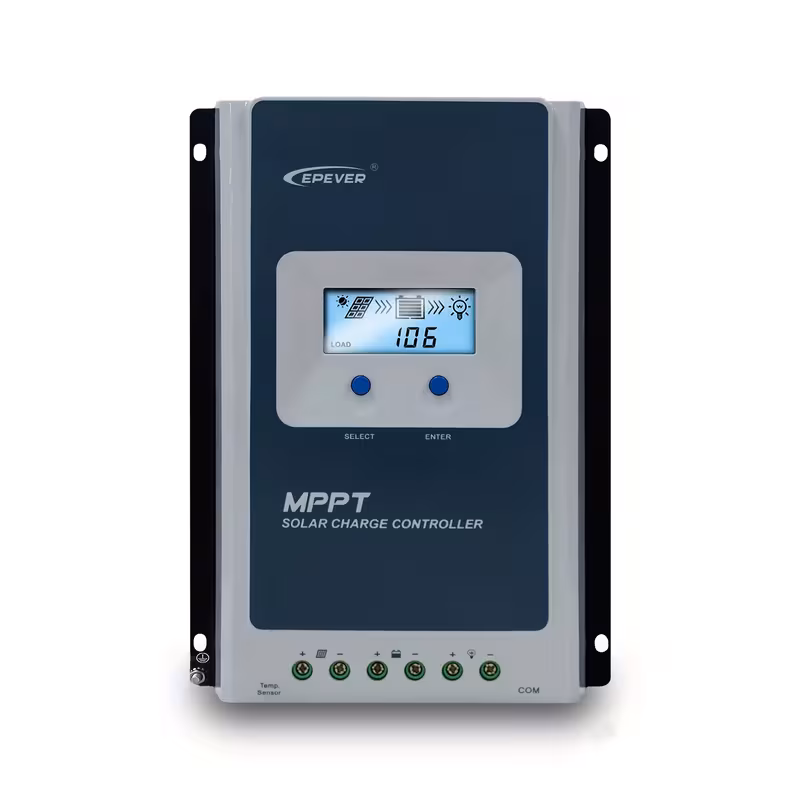

    EPever MPPT Solar Charge Controller PV 100V 40A 12V 24V Auto Max Solar Panel Charger Battery Regulator LCD Display Tracer4210AN G3 for Gel Flooded Sealed LiFePO4 Lithium Battery

    Original price was: $169.00.Current price is: $159.00.

    • EPEVER MPPT Solar Charge Controller 40A Tracer4210AN-G3, 12V/24V auto system voltage recognition, Max PV 100V, Solar panels Max input power 520W for 12V Battery or 1040W for 24V battery. Common Negative Grounding. Upgraded G3 version independent voltage regulation constant voltage output function, ultra-quiet design solves the problem of sharp noise from previous versions of the device
    • Supports multi battery types including Gel AGM Flooded Sealed and LiFePO4 Li(NiCoMn)O2 Lithium user batteries too. Battery temperature compensation function, Real-time energy statistics function, Overheating power reduction function;Multiple load work modes. Full-load operation without any drop in capacity within the range of working. Charging power and current limitation function which can ensure the product’s service life
    • With RS485 communication interface adopts professional protection chip and Modbus communication protocol, Optional Accessories such as MT50, WiFi adapter ,BLE adapter ,eLOG01 , USB-RS485 cable to monitor and adjust more details parameters by mobile phone APP or PC software
    • Advanced MPPT control algorithm technology, with Max. tracking efficiency higher than 99.5%, Ultra-fast tracking speed and guaranteed tracking efficiency, minimize the maximum power point loss rate and loss time ; Wide MPP operating voltage range ,Accurate recognition and tracking of multiple-peaks maximum power point, Maximum DC/DC conversion efficiency of 98%
    • With its robust construction and user-friendly interface, empowers both novice users and experienced professionals to optimize their solar installations efficiently. Wide range applications such as communication base station, home system, street lighting system, marine system, RV solar system, and site monitoring system
      **NOTE** Instore Pickup Only , No Shipping of Solar Equipment or panels.
    SKU: Tracer4210AN G3 Category:

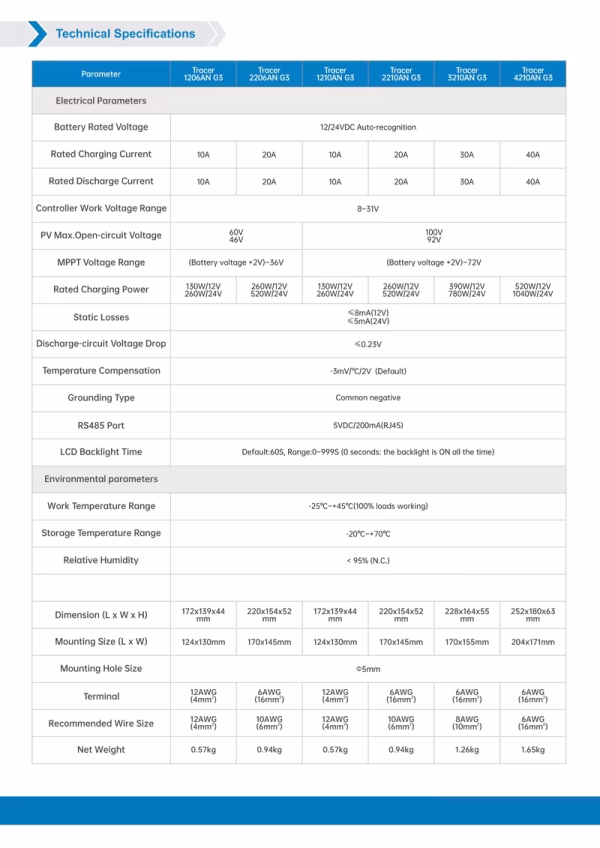

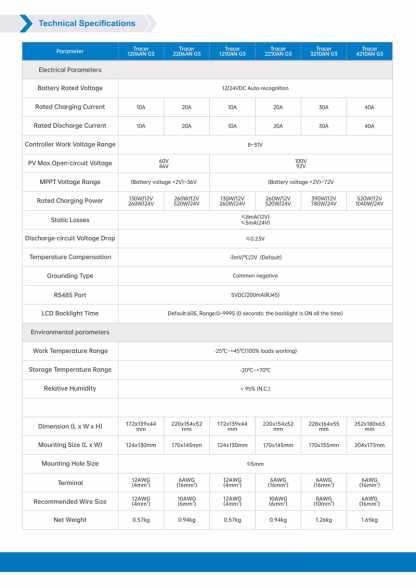

    • Tracer4210AN(G3)
    • Rated charge and discharge current :40Amp
    • Nominal system voltage:12V/24V DC auto
    • Max. PV input power: 520W charge for 12V battery system / 1040W @ 24V battery system
    • Max. PV open circuit voltage:100V(at minimum operating environment temperature) 92V(at 25℃ environment temperature)

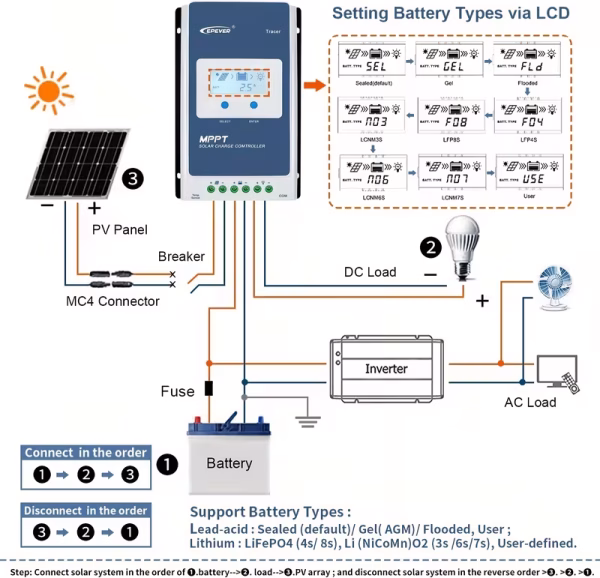

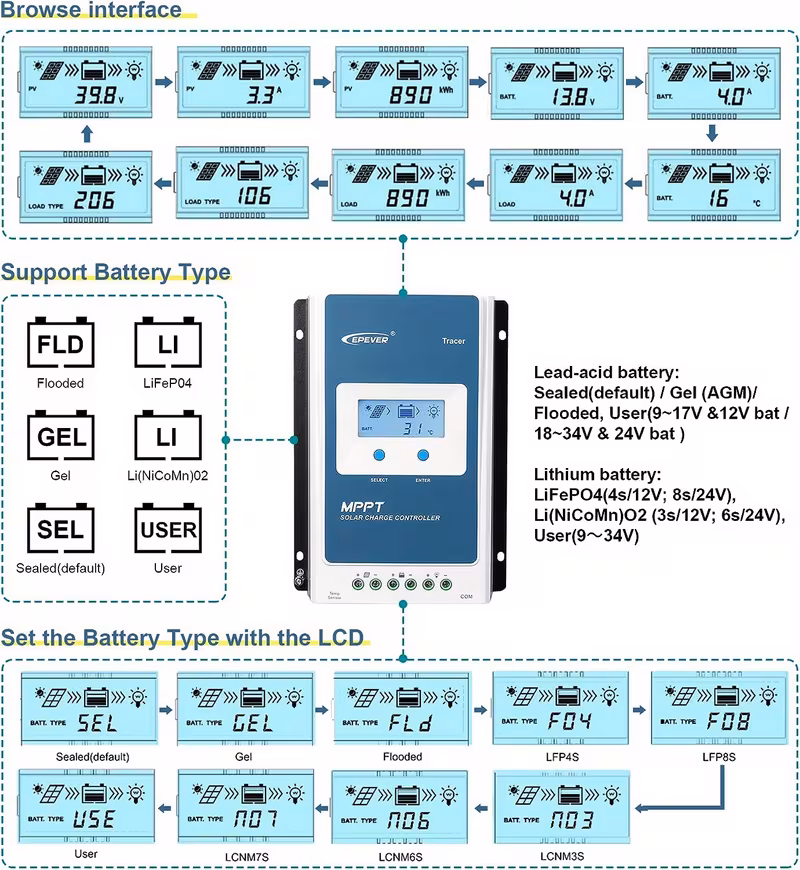

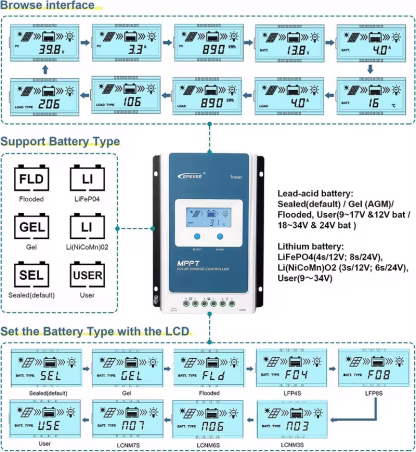

    • Battery Type :Lead-acid: Sealed (default)/ Gel/ AGM/ Flooded / User (9～17V@12V; 18～34V@ 24V) ; Lithium: LiFePO4 (4s/12V; 8s/24V), Li (NiCoMn)O2 (3s/12V; 6s/24V), User (9～34V) and User-defined.
    • Grounding : Common negative
    • Tracking efficiency : ≥99.5% , Max. conversion efficiency :98%
    • Working environment temperature : -25℃～+50℃(100% input and output)
    • Temperature: -20°C — +70°C/-4°F — 158°F
    • LCD backlight time : 60S (Default)
    • RS485 interface:5VDC/100mA
    • Controller Terminals:#6AWG(16mm2) ; Recommended Wire cable:#6AWG(16mm2)

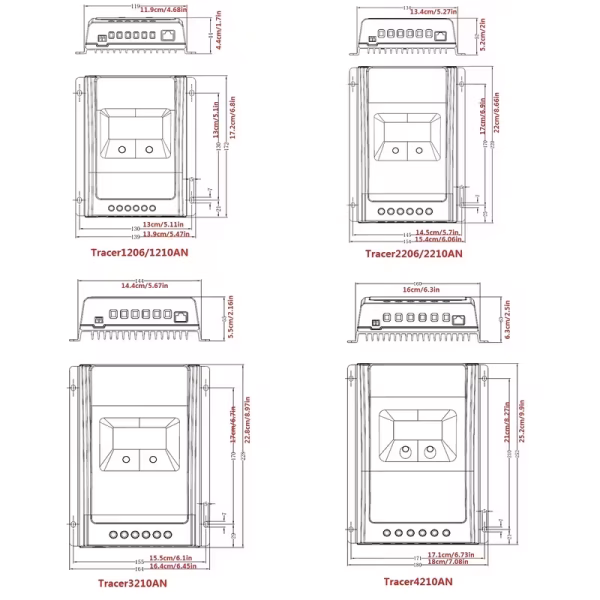

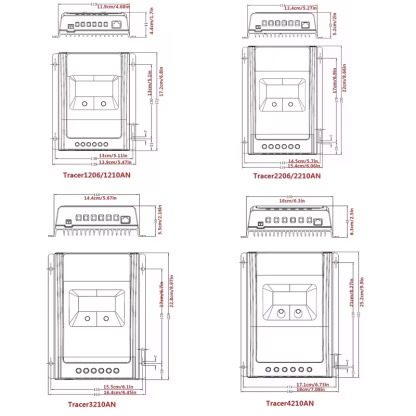

    • Dimension:252*180*63mm
    • weight :1.65 KG

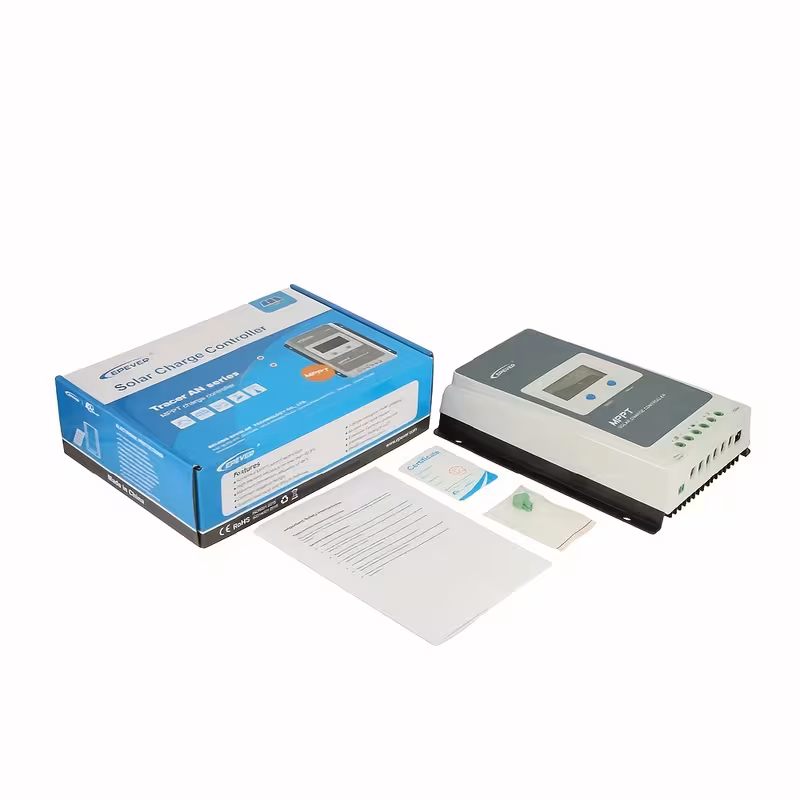

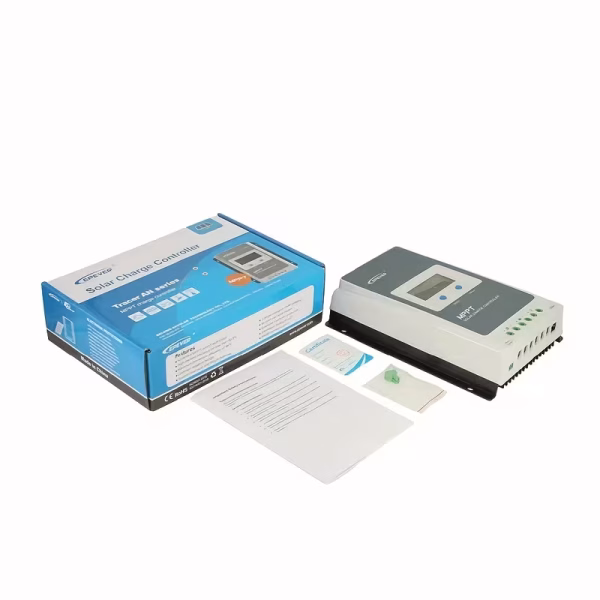

    Package List:



    • 1 x MPPT Solar Charge Controller 40A (Tracer4210AN-G3)
    • 1 x User Manual (English)
