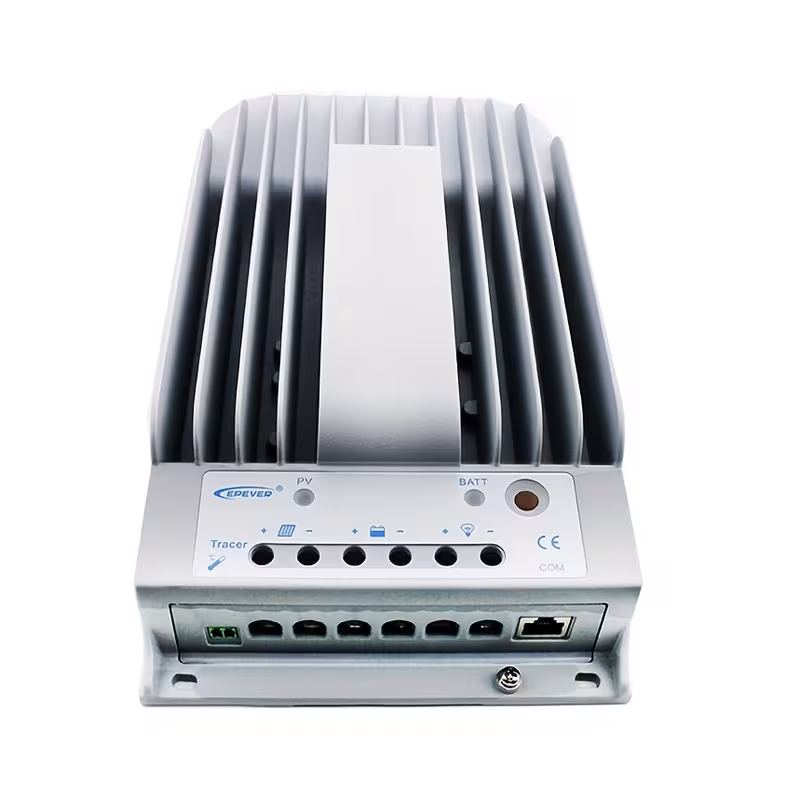

    EPEVER MPPT Charge Controller 40A 12V/24V Auto Max PV 150V Common Negative Ground Solar Panel Regulator (Tracer4215BN (40A,150V))

    Original price was: $279.00.Current price is: $259.00.

    • Advanced MPPT (Maximum Power Point Tracking) technology, Tracking efficiency no less than 99.5%, Maximum conversion efficiency of 98%.
    • Reliable automatic limit function of maximum PV input power, ensuring no overload under any circumstance. Wide MPP operating voltage range. Die-cast aluminum design, ensuring excellent heat dissipation characteristic.
    • 12/24VDC automatically identifying system voltage, and has multiple load control modes: manual control, light ON/OFF, light ON+Timer and time control, support 4 charging options: Sealed, Gel, Flooded and User.
    • Available for PC monitoring (Cable not Included) and external display unit connecting like MT50 and so on, realizing real-time data checking and parameters setting, and support software upgrade.
    • With Modbus communication protocol interface, it is convenient for customers to expand applications and monitor in various fields like telecommunication base station, household system, street lighting system, wilderness monitoring system, etc.
      **NOTE** Instore Pickup Only , No Shipping of Solar Equipment or panels.
    SKU: Tracer4215BN Category:

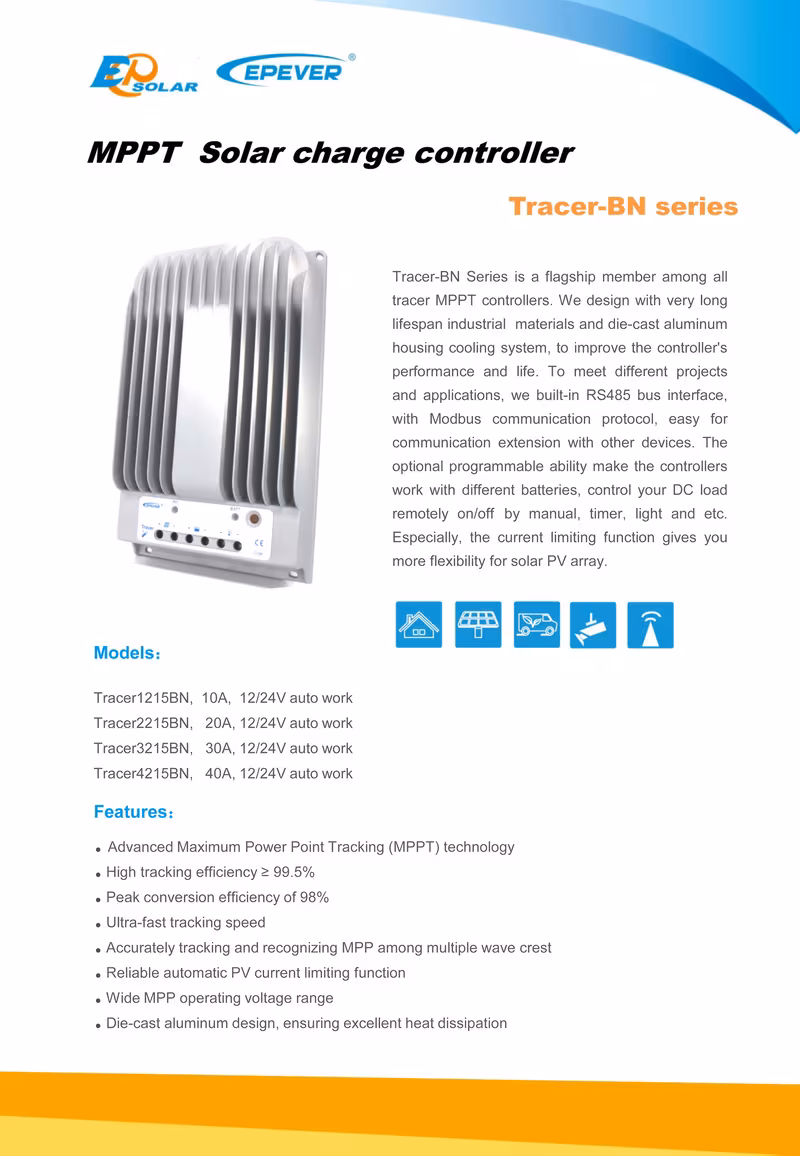

    EPEVER Tracer-BN Series is a flagship member among all Tracer MPPT controllers.
    very long lifespan industrial materials and die-cast aluminum housing cooling system, to improve controller’s performance and life. To meet different projects.

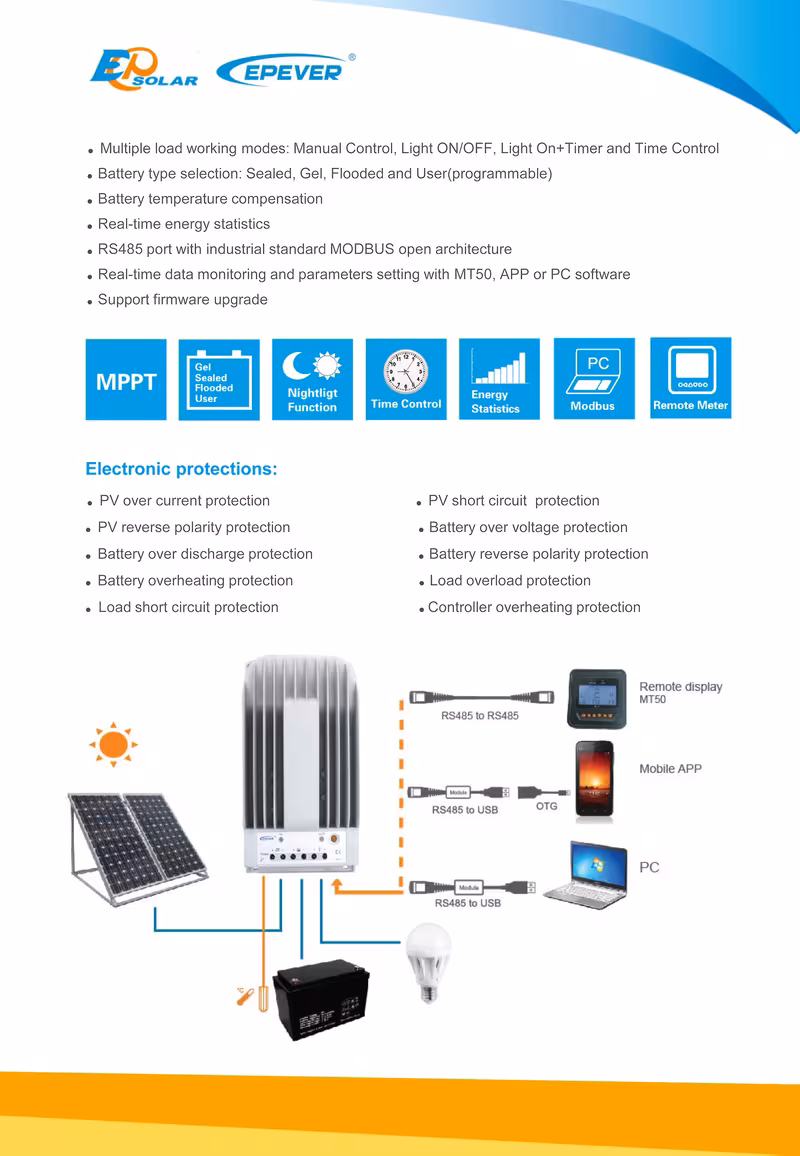

    Features:
    ● Advanced Maximum Power Point Tracking (MPPT) technology , High tracking efficiency ≥ 99.5% ,Peak conversion efficiency of 98% ,Ultra-fast tracking speed
    ● Accurately tracking and recognizing MPP among multiple wave crest , Wide MPP operating voltage range , Reliable automatic PV current limiting function
    ● Die-cast aluminum design, ensuring excellent heat dissipation
    ● Battery type selection: Sealed, Gel, Flooded and User(programmable) , Battery temperature compensation
    ● Multiple load working modes: Manual Control, Light ON/OFF, Light On+Timer and Time Control ; Real-time energy statistics

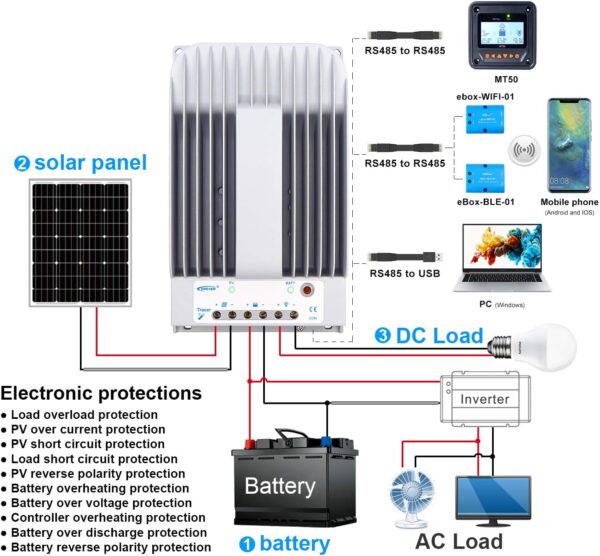

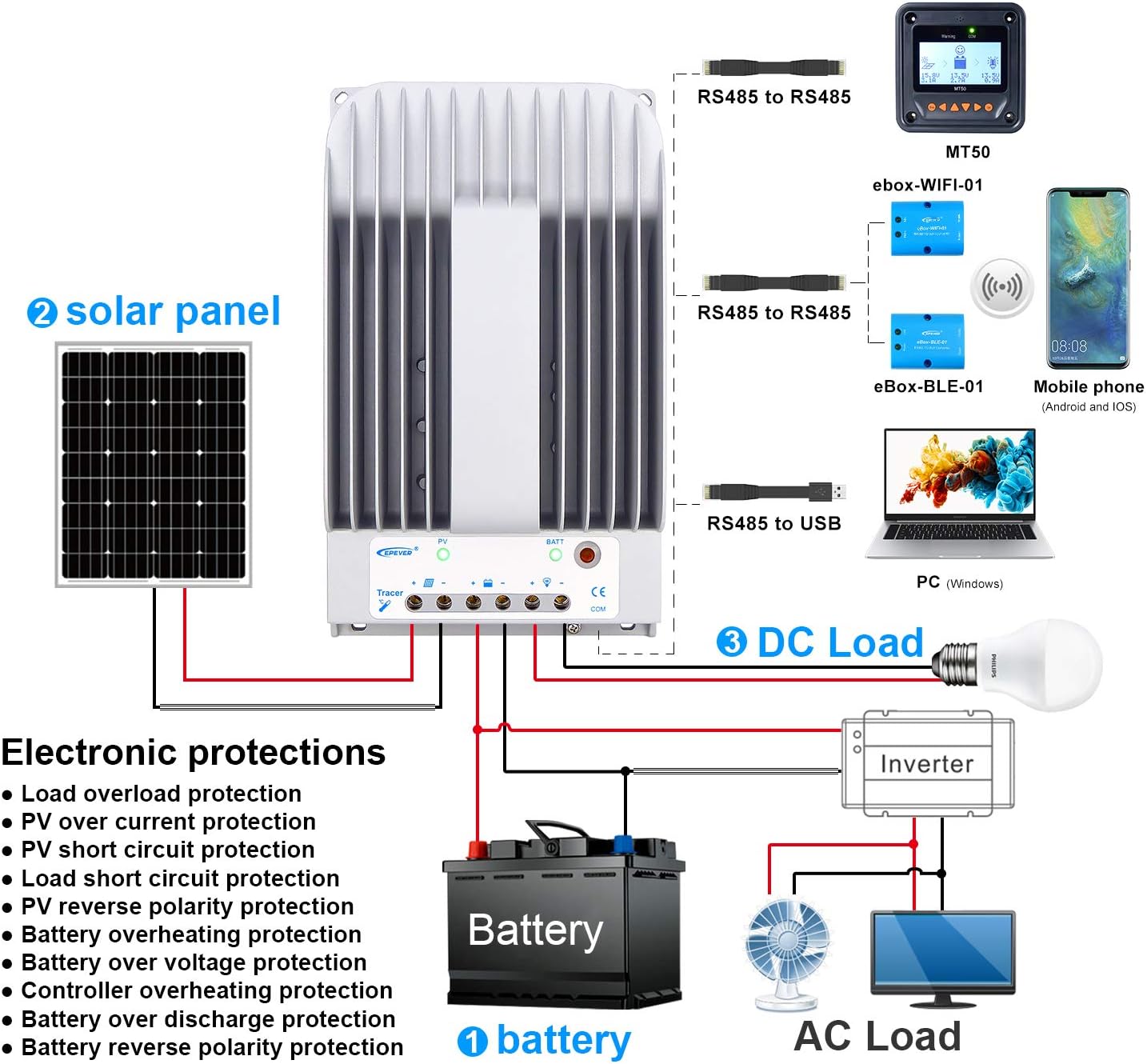

    ● RS485 port with industrial standard MODBUS open architecture , Real-time data monitoring and parameters setting with MT50, APP or PC software, Support firmware upgrade

    Electronic protections:
    ◆ PV short circuit protection ◆ PV overvoltage alarm protection ◆ PV current limiting protection ◆ PV reverse polarity protection
    ◆ Battery overcharge protection ◆ Battery over discharge protection ◆ Battery reverse polarity protection
    ◆ Load overload protection ◆ Load short circuit protection ◆ Overheating protection

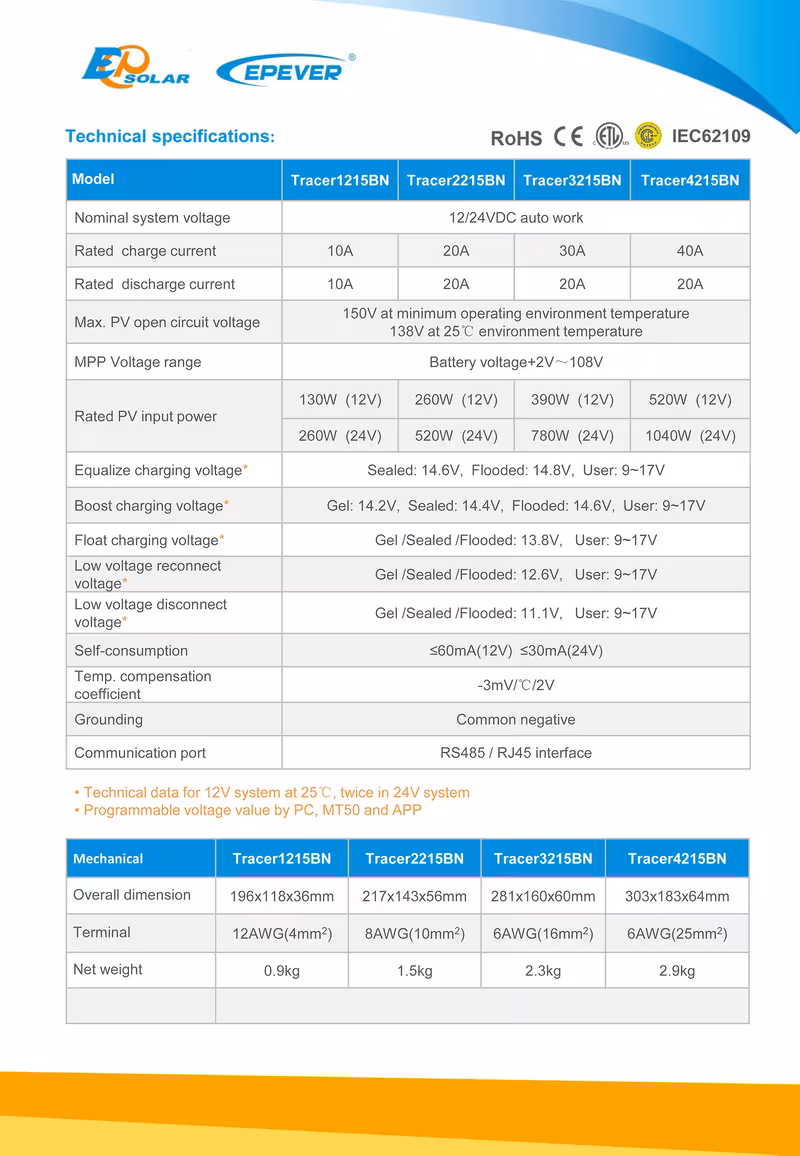

    Technical Data :
    Nominal system voltage: 12VDC / 24VDC Auto work
    Rated charge current:40A
    Rated discharge current: 40A
    Max. solar input voltage:150VDC
    Max. PV input power:520W(12V battery) / 1040W(24V battery)
    Self-consumption*:≤60mA(12V);≤30mA(24V)
    Mounting dimension: 130mm x 204mm
    Mounting hole size:Φ4.7
    Power cable: 6AWG(25mm2)

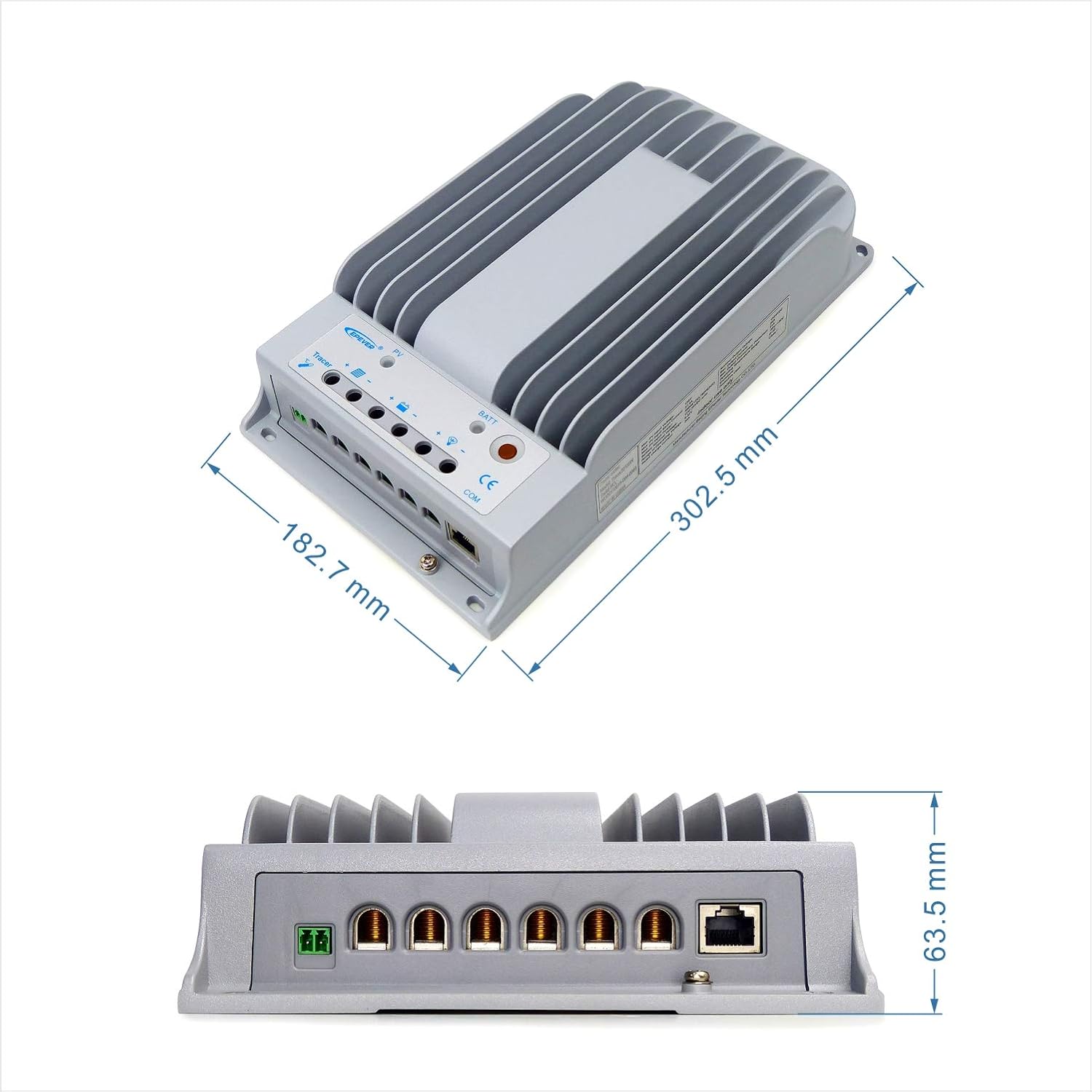

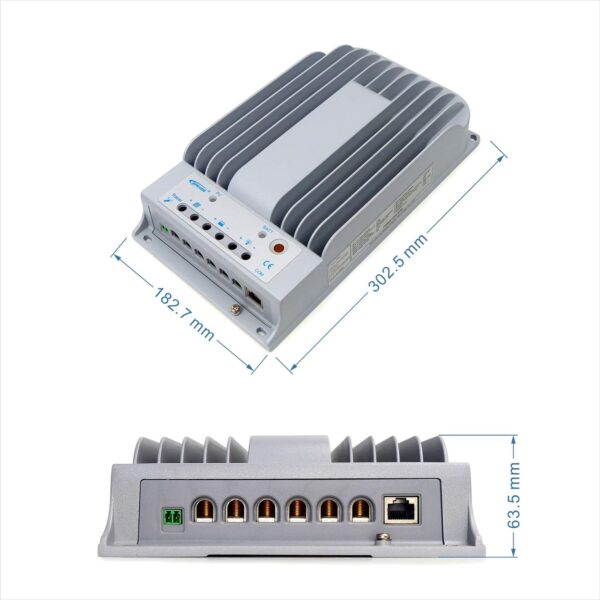

    Dimension: 303*183*64 mm
    Weight: 2.9kg

    Packge :
    1 x MPPT solar charge controller Tracer4215BN
    1 x Manual (English)
